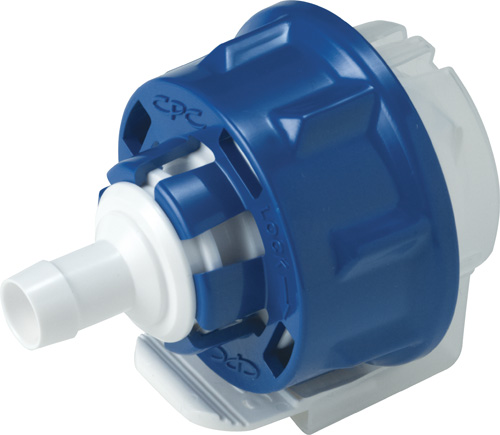

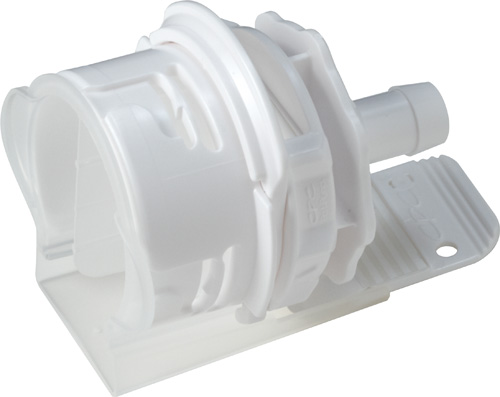

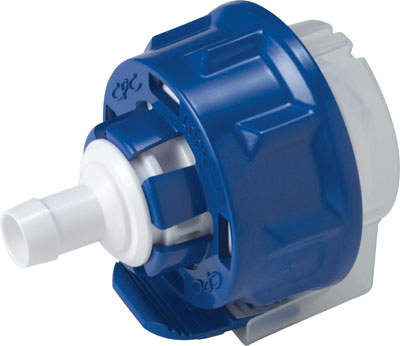

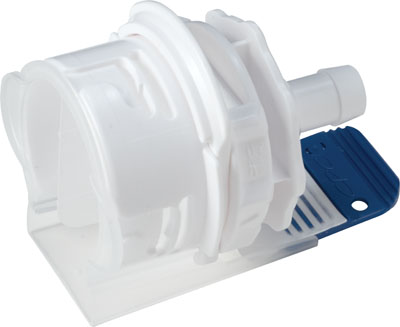

AseptiQuik® C
AseptiQuik® C Connectors provide quick and easy sterile connections, even in non-sterile environments. AseptiQuik’s “CLICK-PULL-TWIST” design enables users to transfer media easily with less risk of operator error. The connector’s robust design provides reliable performance without the need for clamps, fixtures or tube welders. Biopharmaceutical manufacturers can make sterile connections with the quality and market availability they expect from the leader in single-use connection technology.
Specifications
PRESSURE:
Up to 60 psi, 4.1 bar
TEMPERATURE:
39°F to 104°F (4°C to 40°C)
STERILIZATION:
Gamma: Up to 50kGy irradiation
AutoClave High Temp (HT) Version: Up to 266°F (130°C) for 30 minutes
MATERIALS:
Connector: Polycarbonate (white), USP Class VI, ADCF
Lock Ring:
Polycarbonate (blue), USP Class VI, ADCF
Polycarbonate (blue, standard version), USP Class VI, ADCF
Pull Tabs:
Polycarbonate (white, HT version), USP Class VI, ADCF
Caps:
Polypropylene (clear), USP Class VI, ADCF
Seals:
Silicone (clear), platinum-cured, USP Class VI, ADCF
Membrane:
Polyethylene (standard version), USP Class VI, ADCF
Hydrophobic polyethersulfone (HT version), USP Class VI
POLYCARBONATE with Blue Pull Tabs | CAT NO | DESCRIPTION | TERMINATION |
 | AQC17006 | 3/8 Hose Barb AseptiQuik C Body | 3/8" HOSE BARB |
AQC17008 | 1/2 Hose Barb AseptiQuik C Body | 1/2" HOSE BARB | |
AQC33012 | 3/4 Sanitary AseptiQuik C Body | 3/4" SANITARY |
POLYCARBONATE HT with White Pull Tabs | CAT NO | DESCRIPTION | TERMINATION |
 | AQC17006HT | 3/8 Hose Barb AseptiQuik C Body, High Temperature | 3/8" HOSE BARB |
AQC17008HT | 1/2 Hose Barb AseptiQuik C Body, High Temperature | 1/2" HOSE BARB | |
AQC33012HT | 3/4 Sanitary AseptiQuik C Body, High Temperature | 3/4" SANITARY |
POLYCARBONATE with Blue Pull Tabs | CAT NO | DESCRIPTION | TERMINATION |
 | AQC22006 | 3/8 Hose Barb AseptiQuik C Insert | 3/8" HOSE BARB |
AQC22008 | 1/2 Hose Barb AseptiQuik C Insert | 1/2" HOSE BARB | |
AQC44012 | 3/4 Sanitary AseptiQuik C Insert | 3/4" SANITARY |
POLYCARBONATE HT with White Pull Tabs | CAT NO | DESCRIPTION | TERMINATION |
 | AQC22006HT | 3/8 Hose Barb AseptiQuik C Insert, High Temperature | 3/8" HOSE BARB |
AQC22008HT | 1/2 Hose Barb AseptiQuik C Insert, High Temperature | 1/2" HOSE BARB | |
| AQC44012HT | 3/4 Sanitary AseptiQuik C Insert, High Temperature | 3/4" SANITARY |
