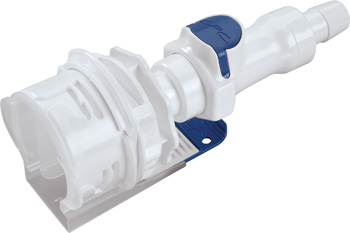

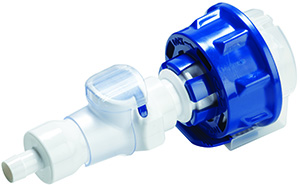

AseptiQuik® DC
AseptiQuik® DC Connectors are the first all-in-one single-use connection technology to offer both a sterile connect and sterile disconnect. With the AseptiQuik DC Connector, manufacturers can make a quick and easy sterile connection and disconnection, even in non-sterile environments. AseptiQuik DC’s intuitive "CLICK-PULL-TWIST" design enables users to transfer media easily with less risk of operator error. After transfer is complete, the connector features a simple one-step disconnection that maintains media sterility by preventing external organisms from entering into the media flow path. The connector’s robust design and automatic shutoff valves provide reliable performance without the need for sanitary clamps, fixtures or tube welders.
Specifications
PRESSURE : Up to 60 psi, 4.1 bar
TEMPERATURE : 39°F to 104°F (4°C to 40°C)
STERILIZATION:
Gamma : Up to 50kGy irradiation
AutoClave High Temp (HT) Version : Up to 266°F (130°C) for 30 minutes
MATERIALS :
Connector: Polycarbonate (white), USP Class VI, ADCF
Lock Ring :
Polycarbonate (blue), USP Class VI, ADCF
Polycarbonate (blue, standard version), USP Class VI, ADCF
Pull Tabs :
Polycarbonate (white, HT version), USP Class VI, ADCF
Caps :
Polypropylene (clear), USP Class VI, ADCF
Seals :
Silicone (clear), platinum-cured, USP Class VI, ADCF
Membrane :
Polyethylene (standard version), USP Class VI, ADCF
Hydrophobic polyethersulfone (HT version), USP Class VI
Springs :
316L stainless steel
POLYCARBONATE with Blue Pull Tabs | CAT NO | DESCRIPTION | TERMINATION |
 | AQCDC17004 | 1/4 Hose Barb AseptiQuik DC Body | 1/4" HOSE BARB |
AQCDC17006 | 3/8 Hose Barb AseptiQuik DC Body | 3/8" HOSE BARB | |
AQCDC17008 | 1/2 Sanitary AseptiQuik DC Body | 1/2" HOSE BARB |
POLYCARBONATE HT with White Pull Tabs | CAT NO | DESCRIPTION | TERMINATION |
 | AQCDC22004 | 1/4 Hose Barb AseptiQuik DC Insert | 1/4" HOSE BARB |
AQCDC22006 | 3/8 Hose Barb AseptiQuik DC Insert | 3/8" HOSE BARB | |
AQCDC22008 | 1/2 Sanitary AseptiQuik DC Insert | 1/2" HOSE BARB |
