AseptiQuik® G
Genderless AseptiQuik® G Connectors enable quick and easy sterile connections, even in non-sterile environments. The easy-to-use genderless design simplifies system integration and minimizes the risk of operator error.
The connectors' robust construction provides enhanced user confidence and reliable performance without the need for clamps, fixtures or tube welders. Biopharmaceutical manufacturers benefit from a full range of interchangeable ¼" to ¾" flow solutions with the quality and market availability they expect from the leader in single-use connection technology.
Specifications
PRESSURE:
Up to 60 psi, 4.1 bar
Up to 75 psi, 5.1 bar for 48 hours
TEMPERATURE:
34°F to 104°F (1°C to 40°C)
STERILIZATION:
Gamma: Up to 50kGy irradiation
AutoClave High Temp (HT) Version: Up to 266°F (130°C) for 60 minutes
MATERIALS:
Main Components: Polycarbonate (white), USP Class VI, ADCF
Pull Tabs/Caps:
Polycarbonate (blue, standard version), USP Class VI, ADCF
Polycarbonate (white, HT version), USP Class VI, ADCF
Seals:
Silicone (clear), platinum-cured, USP Class VI, ADCF
Membrane:
Polyethylene (standard version), USP Class VI, ADCF
Hydrophobic polyethersulfone (HT version), USP Class VI, ADCF, PTFE strip sticker

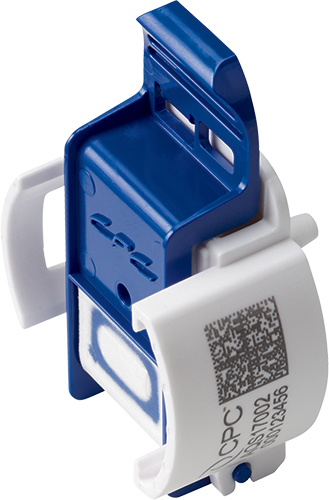

POLYCARBONATE with Blue Pull Tabs | CAT NO | DESCRIPTION | TERMINATION |
 | AQG17004 | 1/4 Hose Barb Genderless AseptiQuik G Connector Body | 1/4" HOSE BARB |
AQG17006 | 3/8 Hose Barb Genderless AseptiQuik G Connector Body | 3/8" HOSE BARB | |
AQG17008 | 1/2 Hose Barb Genderless AseptiQuik G Connector Body | 1/2" HOSE BARB | |
AQG17012 | 3/4 Hose Barb Genderless AseptiQuik G Connector Body | 3/4" HOSE BARB | |
AQG33012 | 3/4 Sanitary Genderless AseptiQuik G Connector Body | 3/4" SANITARY |

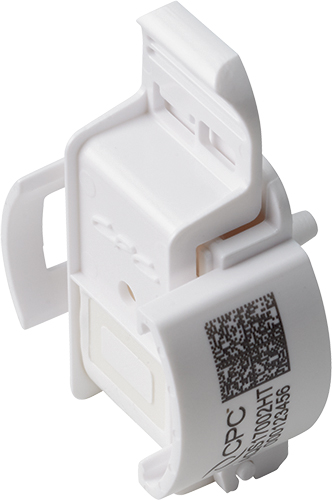

POLYCARBONATE HT with White Pull Tabs | CAT NO | DESCRIPTION | TERMINATION |
 | AQG17004 | 1/4 Hose Barb Genderless AseptiQuik G Connector Body, High Temperature | 1/4" HOSE BARB |
AQG17006HT | 3/8 Hose Barb Genderless AseptiQuik G Connector Body, High Temperature | 3/8" HOSE BARB | |
AQG17008HT | 1/2 Hose Barb Genderless AseptiQuik G Connector Body, High Temperature | 1/2" HOSE BARB | |
AQG17012HT | 3/4 Hose Barb Genderless AseptiQuik G Connector Body, High Temperature | 3/4" SANITARY | |
AQG33012HT | 3/4 Sanitary Genderless AseptiQuik G Connector Body, High Temperature | 3/4" SANITARY |
