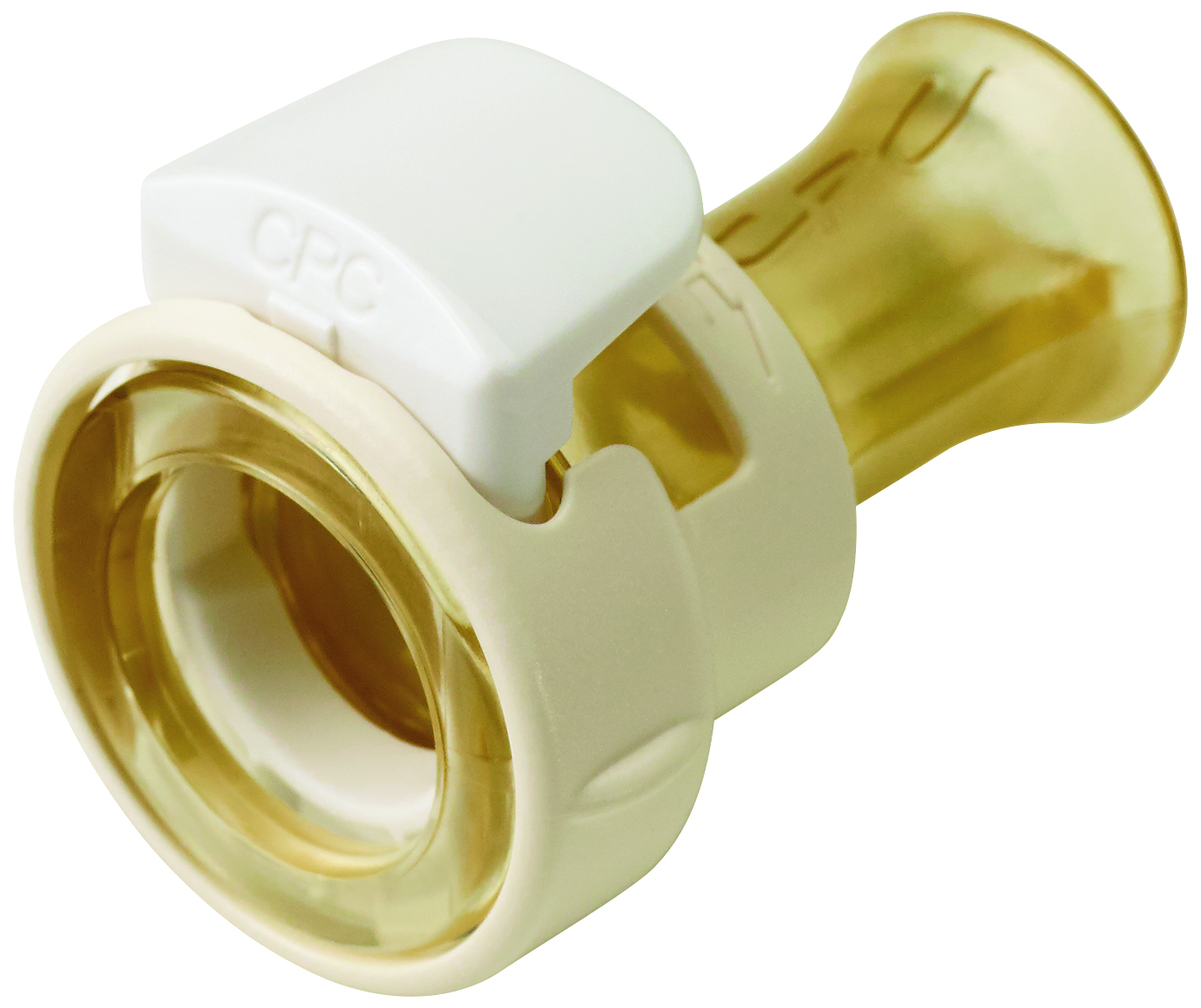

MPC Series couplings
MPC Series couplings add ease of use and security to your most critical fluid handling applications. Choose from a full line of connectors and configurations, including pressure sealing caps and plugs, in sizes to fit 1/8", 1/4" and 3/8" tubing. MPC couplings offer optional locking sleeves to further guard against accidental disconnects. In addition, coupling halves can be rotated when connected to reduce tube kinks.
Specifications
PRESSURE: Vacuum to 60 psi, 4.1 bar
TEMPERATURE:
Polycarbonate : -40°F to 250°F (-40°C to 121°C)
Polysulfone : -40°F to 300°F (-40°C to 149°C)
STERILIZATION:
Gamma : Up to 50 kGy irradiation
Autoclave:
Polycarbonate : Up to 250°F (121°C), 30 minutes, up to 10 repetitions. Sterilize uncoupled only.
Polysulfone : Up to 270°F (132°C) for 60 minutes, up to 25 repetitions. Sterilize uncoupled only.
TUBING SIZES : 1/8" to 3/8" ID (3.2mm to 9.5mm)
Coupling Bodies
POLYCARBONATE | CAT NO | DESCRIPTION | TUBING | METRIC |
 | MPC17002T03 | 1/8 HOSE BARB NON-VALVED IN-LINE COUPLING BODY | 1/8" ID | 3.2mm ID |
MPC17004T03 | 1/4 HOSE BARB NON-VALVED IN-LINE COUPLING BODY | 1/4" ID | 6.4mm ID | |
MPC17006T03 | 3/8 HOSE BARB NON-VALVED IN-LINE COUPLING BODY | 3/8" ID | 9.5mm ID | |
 | MPCK17002T03 | 1/8 HOSE BARB NON-VALVED IN-LINE COUPLING BODY WITH LOCK | 1/8" ID | 3.2mm ID |
MPCK17004T03 | 1/4 HOSE BARB NON-VALVED IN-LINE COUPLING BODY WITH LOCK | 1/4" ID | 6.4mm ID | |
MPCK17006T03 | 3/8 HOSE BARB NON-VALVED IN-LINE COUPLING BODY WITH LOCK | 3/8" ID | 9.5mm ID |
Coupling Inserts
| Coupling Inserts | ||||
POLYCARBONATE | CAT NO | DESCRIPTION | TUBING | METRIC |
 | MPC22002T03M | 1/8 HOSE BARB NON-VALVED IN-LINE COUPLING INSERT | 1/8" ID | 3.2mm ID |
MPC22004T03M | 1/4 HOSE BARB NON-VALVED IN-LINE COUPLING INSERT | 1/4" ID | 6.4mm ID | |
MPC22006T03M | 3/8 HOSE BARB NON-VALVED IN-LINE COUPLING INSERT | 3/8" ID | 9.5mm ID | |
Coupling Sealing cap
| Coupling Sealing cap | ||||
POLYCARBONATE | CAT NO | DESCRIPTION | TUBING | METRIC |
 | MPC32003 | MPC SEALING CAP | - | - |
 | MPCK32003 | MPC SEALING CAP WITH LOCK | - | - |
Coupling Sealing Plug
POLYCARBONATE | CAT NO | DESCRIPTION | TUBING | METRIC |
 | MPC30003M | MPC COUPLING CAP | - | - |
Coupling Bodies
POLYSULFONE | CAT NO | DESCRIPTION | TUBING | METRIC |
 | MPC17002T39 | 1/8 HOSE BARB NON-VALVED IN-LINE COUPLING BODY | 1/8" ID | 3.2mm ID |
MPC17004T39 | 1/4 HOSE BARB NON-VALVED IN-LINE COUPLING BODY | 1/4" ID | 6.4mm ID | |
MPC17006T39 | 3/8 HOSE BARB NON-VALVED IN-LINE COUPLING BODY | 3/8" ID | 9.5mm ID | |
 | MPCK17002T39 | 1/8 HOSE BARB NON-VALVED IN-LINE COUPLING BODY WITH LOCK | 1/8" ID | 3.2mm ID |
MPCK17004T39 | 1/4 HOSE BARB NON-VALVED IN-LINE COUPLING BODY WITH LOCK | 1/4" ID | 6.4mm ID | |
MPCK17006T39 | 3/8 HOSE BARB NON-VALVED IN-LINE COUPLING BODY WITH LOCK | 3/8" ID | 9.5mm ID |
Coupling Inserts
POLYSULFONE | CAT NO | DESCRIPTION | TUBING | METRIC |
 | MPC17002T39 | 1/8 HOSE BARB NON-VALVED IN-LINE COUPLING BODY | 1/8" ID | 3.2mm ID |
MPC17004T39 | 1/4 HOSE BARB NON-VALVED IN-LINE COUPLING BODY | 1/4" ID | 6.4mm ID | |
MPC17006T39 | 3/8 HOSE BARB NON-VALVED IN-LINE COUPLING BODY | 3/8" ID | 9.5mm ID |
Coupling Sealing cap
POLYSULFONE | CAT NO | DESCRIPTION | TUBING | METRIC |
 | MPC32039 | MPC SEALING CAP | - | - |
 | MPCK32003 | MPC SEALING CAP WITH LOCK | - | - |
Coupling Sealing Plug
POLYSULFONE | CAT NO | DESCRIPTION | TUBING | METRIC |
 | MPC30039M | MPC COUPLING PLUG | - | - |
