MPX Series couplings
MPX Series couplings add ease of use and security to your most critical fluid handling applications.
Choose from a full line of connectors and configurations, including pressure sealing caps and plugs in sizes to fit 3/8" and 1/2" tubing. MPX couplings offer optional locking sleeves to further guard against accidental disconnects. In addition, coupling halves can be rotated when connected reducing tube kinks.
Specifications
PRESSURE: Vacuum to 60 psi, 4.1 bar
TEMPERATURE:
Polycarbonate : -40°F to 250°F (-40°C to 121°C)
Polysulfone : -40°F to 300°F (-40°C to 149°C)
STERILIZATION:
Gamma : Up to 50 kGy irradiation
Autoclave:
Polycarbonate : Up to 250°F (121°C), 30 minutes, up to 10 repetitions. Sterilize uncoupled only.
Polysulfone : Up to 270°F (132°C) for 60 minutes, up to 25 repetitions. Sterilize uncoupled only.
TUBING SIZES : 3/8" to 1/2" ID (9.5mm to 12.7mm)
Coupling Bodies
POLYCARBONATE | CAT NO | DESCRIPTION | TUBING | METRIC |
 | MPX17803 | 1/2 HOSE BARB NON-VALVED IN-LINE COUPLING BODY | 1/2" ID | 12.7mm ID |
 | MPXK17803 | 1/2 HOSE BARB NON-VALVED IN-LINE COUPLING BODY WITH LOCK | 1/2" ID | 12.7mm ID |

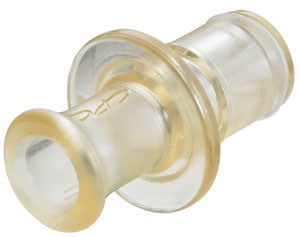

Coupling Inserts
POLYCARBONATE | CAT NO | DESCRIPTION | TUBING | METRIC |
 | MPX22603M | 3/8 HOSE BARB NON-VALVED IN-LINE COUPLING INSERT | 3/8" ID | 9.5mm ID |
MPX22803M | 1/2 HOSE BARB NON-VALVED IN-LINE COUPLING INSERT | 1/2" ID | 12.7mm ID |
Coupling Sealing cap
POLYCARBONATE | CAT NO | DESCRIPTION | TUBING | METRIC |
 | MPX32003 | MPX SEALING CAP | - | - |
Coupling Sealing Plug
| Coupling Sealing Plug | ||||
POLYCARBONATE | CAT NO | DESCRIPTION | TUBING | METRIC |
 | MPX30003M | MPX COUPLING Plug | - | - |
POLYSULFONE
| Coupling Bodies | ||||
POLYSULFONE | CAT NO | DESCRIPTION | TUBING | METRIC |
 | MPX17839 | 1/2 HOSE BARB NON-VALVED IN-LINE COUPLING BODY | 1/2" ID | 12.7mm ID |
 | MPXK17839 | 1/2 HOSE BARB NON-VALVED IN-LINE COUPLING BODY WITH LOCK | 1/2" ID | 12.7mm ID |
Coupling Bodies
| Coupling Inserts | ||||
POLYSULFONE | CAT NO | DESCRIPTION | TUBING | METRIC |
 | MPX22639M | 3/8 HOSE BARB NON-VALVED IN-LINE COUPLING INSERT | 3/8" ID | 9.5mm ID |
MPX22839M | 1/2 HOSE BARB NON-VALVED IN-LINE COUPLING INSERT | 1/2" ID | 12.7mm ID | |
Coupling Sealing cap
| Coupling Sealing cap | ||||
POLYSULFONE | CAT NO | DESCRIPTION | TUBING | METRIC |
 | MPX32039 | MPX SEALING CAP | - | - |
Coupling Sealing Plug
POLYSULFONE | CAT NO | DESCRIPTION | TUBING | METRIC |
 | MPX30039M | MPX COUPLING PLUG | - | - |
