Nordson MEDICAL Quick Connects RQX Series

With the RQC Series and RQX Series quick connects, the biopharmaceutical market now has a more robust alternative for its bioprocessing needs, offering a cost effective solution for flexible tubing connections in single use systems. The connector set features a more user friendly interface that includes an optional, integral and easy to use locking feature, as well as a single barb open flow design to provide security and mitigate flow path obstruction. Available in widely used polypropylene and polycarbonate materials, these connectors are compatible with industry standard quick connects to simplify qualification

RQX Series	Cat No.	DESCRIPTION	Material

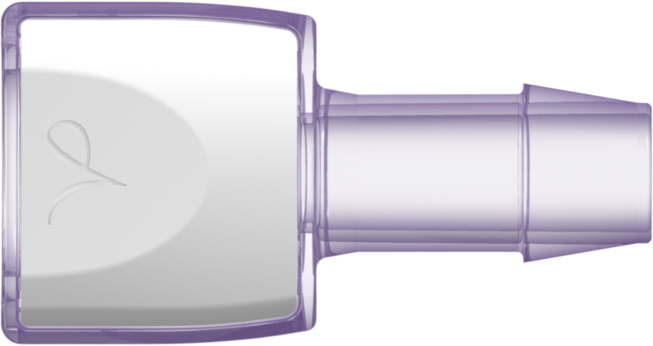

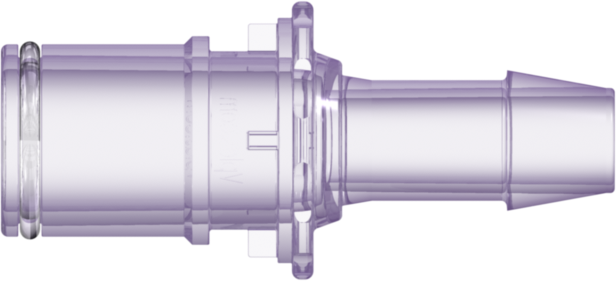

	RQXF670-9024-001	RQX Series Female Open Flow Connector, 600 Series Barb, 3/8" (9.5 mm) ID Tubing	Polycarbonate

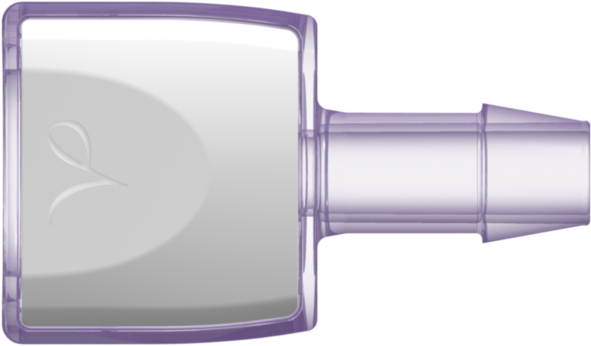

	RQXF680-9024-001	RQX Series Female Open Flow Connector, 600 Series Barb, 1/2" (12.7 mm) ID Tubing	Polycarbonate

RQX Series	Cat No.	DESCRIPTION	Material

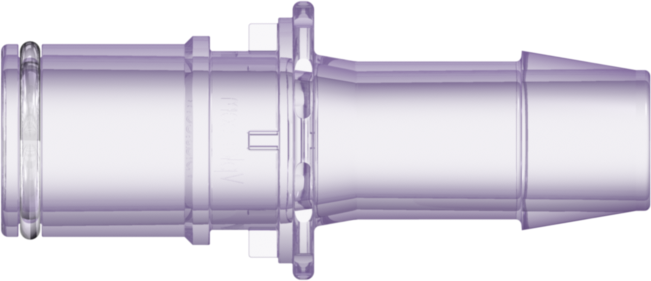

	RQXM670-9024-001	RQX Series Male Open Flow Connector, 600 Series Barb, 3/8" (9.5 mm) ID Tubing	Polycarbonate
	RQXM680-9024-001	RQX Series Male Open Flow Connector, 600 Series Barb, 1/2" (12.7 mm) ID Tubing	Polycarbonate

RQX Series	Cat No.	DESCRIPTION	Material

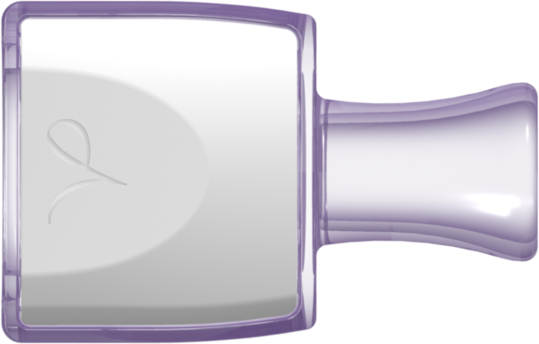

	RQXFC-9024-001	RQX Series Female Connector Cap	Polycarbonate

RQX Series	Cat No.	DESCRIPTION	Material

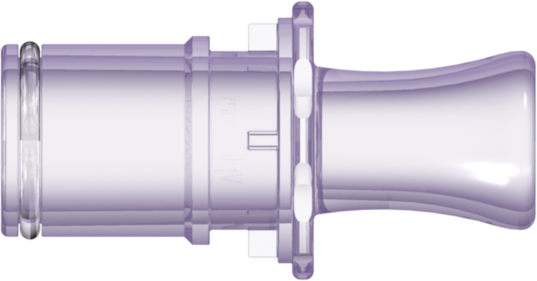

	RQXMP-9024-001	RQX Series Male Connector Plug	Polycarbonate
