Sanitary Fittings

SF Series sanitary fittings from Nordson MEDICAL are designed for use in single-use container fluid transport systems, manifolds and wherever sensitive fluids must be transferred. They are offered in four flange sizes, ¾” (“Mini”), 1-½”, 2”, and 3” (“Maxi”). All work with flanges made to ASME-BPE specifications. SF Series sanitary fittings incorporate 600 Series barbs for easy use with silicone, C-Flex® or Tygon® tubin

FEATURES & BENEFITS

  • Animal-free materials
  • Radiused flow surfaces for smooth uninterrupted flow
  • “Mini” & “Maxi” sizes
  • No Particulate build-up
  • No BSE documentation required
  • Easy to retrofit current operations
  • Works with commercially available clamps
  • Interior surface controlled to 15 Ra microinch
  • Supports cryogenic applications to -80° C

MATERIALS

  • Animal Free Polypropylene, Natural PVDF

Tubing Sizes

  • 1/4”, 3/8”, 1/2”, 3/4”, 1”

Leak Resistance

  • Sanitary fittings were tested pneumatically and hydrostatically. 3/4”, 1-1/2”, and 2” - 80 psi max working pressure 3” - 50 psi max working pressure

Tubing Removal Force:

  • 1/4” PP with C-Flex shore tubing: 21 lbs.
  • 1/2” PP with C-Flex shore A tubing: 89 lbs.
  • 1” PP with C-Flex shore A tubing: 121 lbs.

Interior Surface Finish

  • 15 Ra Microinch

Sanitary Fittings Mini Fittings

Mini FittingsCat No.DESCRIPTIONMaterial

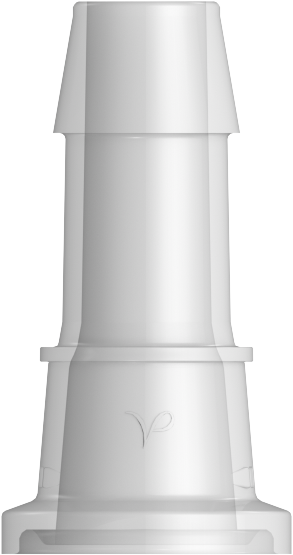

　SFMN6100-6005Sanitary Fitting, Mini Flange to 600 Series Barb,
3/4" (19.0 mm) Tubing ID		Animal-Free Natural Polypropylene

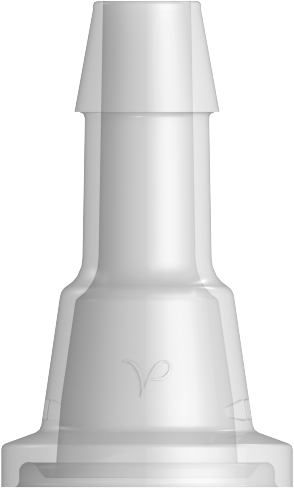

　SFMN630-6005Sanitary Fitting, Mini Flange to 600 Series Barb,
1/8" (3.2 mm) Tubing ID		Animal-Free Natural Polypropylene

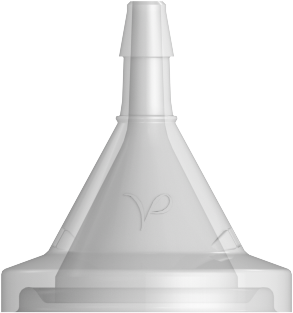

　SFMN655-6005Sanitary Fitting, Mini Flange to 600 Series Barb,
1/4" (6.4 mm) Tubing ID		Animal-Free Natural Polypropylene

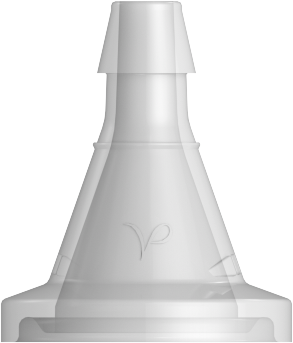

　SFMN670-6005Sanitary Fitting, Mini Flange to 600 Series Barb,
3/8" (9.5 mm) Tubing ID		Animal-Free Natural Polypropylene

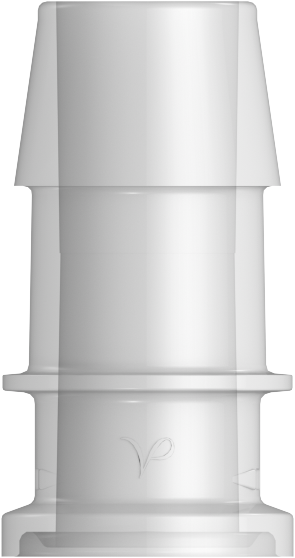

　SFMN680-6005Sanitary Fitting, Mini Flange to 600 Series Barb,
1/2" (12.7 mm) Tubing ID		Animal-Free Natural Polypropylene
