Smart Gasket® offers 1-4 Ports for Product Sampling during Processing

Rubber Fab’s Smart Gasket’s® value is proven when validating sterility in a high-purity pharmaceutical system. The Smart Gasket® is used to obtain the critical thermal mapping information you need during the validation process. Smart Gasket® easily installs between two sanitary standard ferrules using the Rubber Fab sanitary thermocouple clamp to secure the ferrules.

G.O.Science  T:  031-375-6493   E-Mail : info@gosci.co.kr

Smart Gasket®
Our gasket provides up to four internal ports for accepting the Smart Gasket® thermocouple samples or accessories; i.e. ACC-T or K-199-S-Short Temperature Probe; ACC-T or K-199A-L Long Temperature Probe. Each port measures .090″.


There is also a sampler device available that utilizes standard luer lock fittings. Meter fluids in your process system utilizing a peristaltic pump or withdraw samples utilizing our luer lock sampler and luer lock valve or syringe.


Model ACC-7001H is a high performance, precision handheld instrument for the measurement of temperature using type T, K, J, L, N, R or S thermocouple probes. This versatile instrument measures temperature in both °C and °F. The internal memory of the micro-computer stores the minimum and maximum measured temperature for instant recall via the LCD display.

Thermocouple Clamp
Available Sizes:
1/2″, 3/4″, 1″, 1-1/2″, 2″, 3″ and 4″ and fits standard sanitary ferrules.

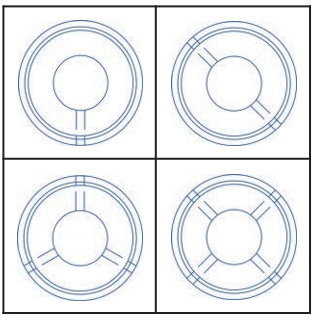

Available Ports:
1, 2, 3, 4

You can also select the Smart Gasket® Spore Trap gasket to securely retain spore challenge test strips.

Available Configurations  for the Smart Gasket®

 .

ACC-T1V-10 :
T Type Teflon Coated Wire Probe

ACC-EXT :
Extension Leads 3MM, 6MM, 12MM

ACC-T202 :

Sampling Injection Tube

ACC-K-199A-L or ACC-T-199A-L
Temperature Probe Long

ACC-T202B :
Stopcock (Lure Lock)



ACC-KV-10 :
K Type Kapton Coated Wire Probe

ACC-T202A :

Hole Plug

ACC-K-199A-S or ACC-T-199A-S
Temperature Probe Short

ACC-7001H

Thermometer

Temperature Range:

-200° to +1370° C

Resolution : 0.1° C

Accuracy:

±0.2ºC from -40ºC to +200ºC


Model ACC-7001H is a high-  performance, precision handheld  instrument for the measurement of  temperature using type T, K, J, L, N, R  or S thermocouple probes.

This versatile instrument measures tem-  perature in both °C and °F. The internal  memory of the micro-computer stores  the minimum and maximum measured  temperature for instant recall via the  LCD display.
