Tube To Tube Fittings

Nordson MEDICAL offers barbed tube fittings and tubing connectors in sizes ranging from 1/16” (1.6 mm) to 1.5” (38.1 mm) tubing ID in over 100 separate configurations in nylon, polypropylene, polycarbonate and PVDF, with other engineering resins available on special order. Available barb fitting styles include straight tube connectors, elbow fittings, tee fittings, crosses, Y (wye) connectors, multi-port connectors, and multiple straight, elbow and tee reducer combinations

FEATURES & BENEFITS

  • Configurations including straight tube connectors, Y connectors, multiport connectors, elbow fittings, tee fittings, all with optional reducers as well.
  • Sizes ranging from 1/16” (1/6 mm) to 1.5” (38.1 mm) ID.
  • Several barb styles offered to provide designers the widest range of assembly forces, pulloff resistance and blowoff resistance, without the need for clamps.
  • High-volume cross connectors available that allow superior flow, ideal for commercial applications.

MATERIALS

  • Available in standard resins such as nylon, polypropylene, polycarbonate, polyvinyldene fluoride (PVDF), with other engineering resins by special order.

BARB STYLES

  • Available barbed fitting styles include straight tube connectors, elbow fittings, tee fittings, crosses, Y (wye) connectors, multi-port connectors, and multiple straight, elbow, and tee reducer combinations .

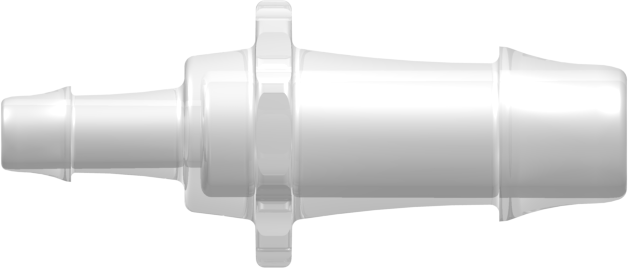

Tube To Tube Fittings Straight Reducer


Straight Reducer Cat No.DESCRIPTIONMaterial

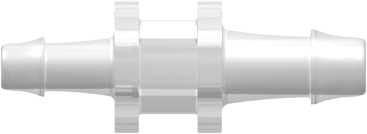

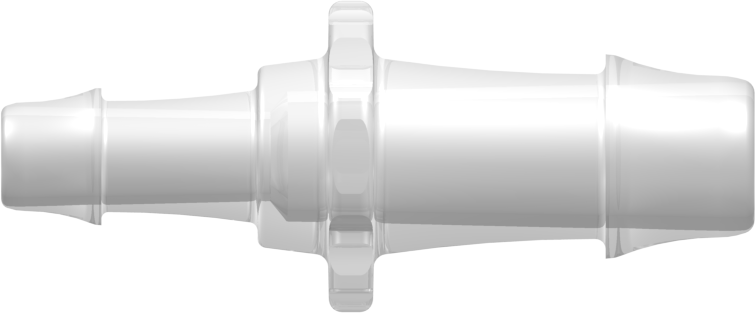

　N007/004-6005Straight Through Reduction Tube Fitting with 500 Series Barbs,
3/32" (2.4 mm) and 1/16" (1.6 mm) ID Tubing		Animal-Free Natural Polypropylene

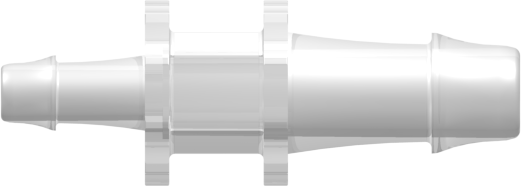

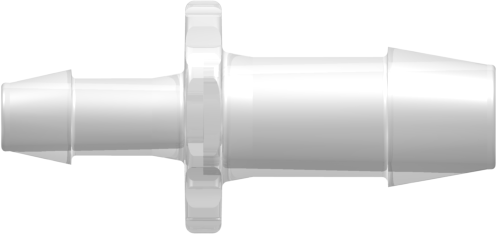

　N013/004-6005Straight Through Reduction Tube Fitting with 500 Series Barbs,
1/8" (3.2 mm) and 1/16" (1.6 mm) ID Tubing		Animal-Free Natural Polypropylene

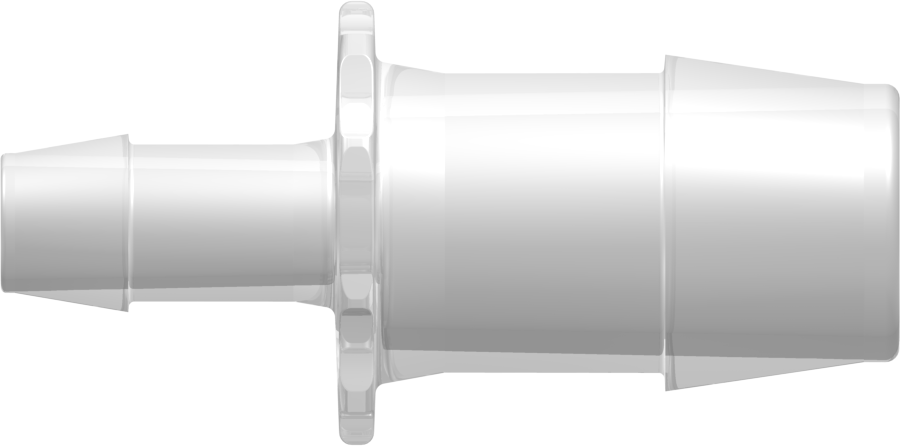

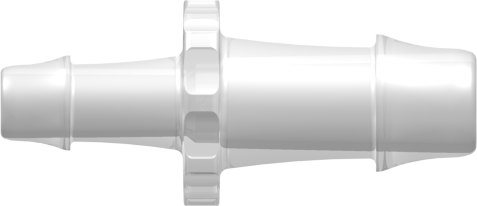

　N013/007-6005Straight Through Reduction Tube Fitting with 500 Series Barbs,
1/8" (3.2 mm) and 3/32" (2.4 mm) ID Tubing		Animal-Free Natural Polypropylene

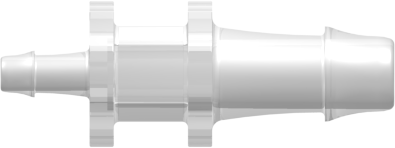

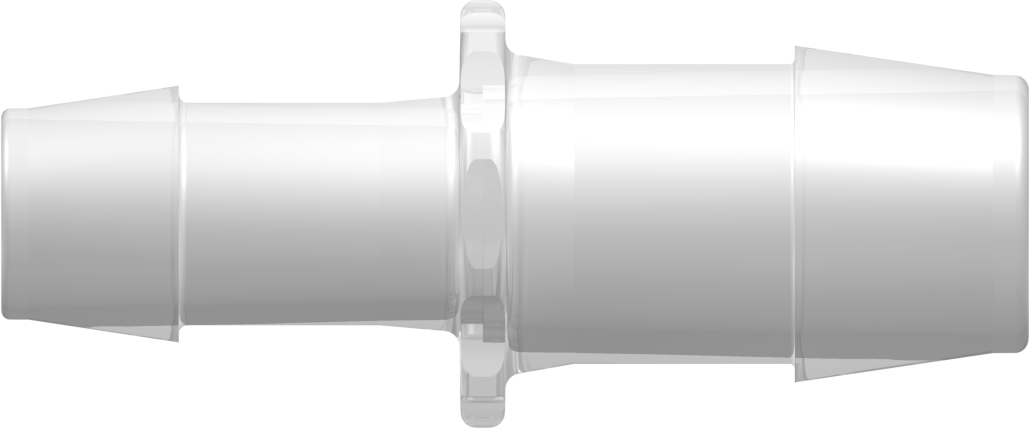

　N035/013-6005Straight Through Reduction Tube Fitting with 500 Series Barbs,
3/16" (4.8 mm) and 1/8" (3.2 mm) ID Tubing		Animal-Free Natural Polypropylene

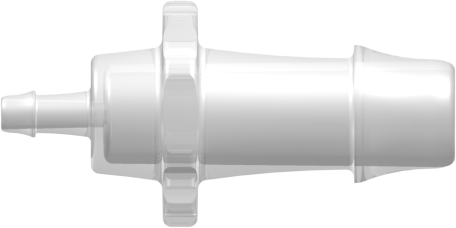

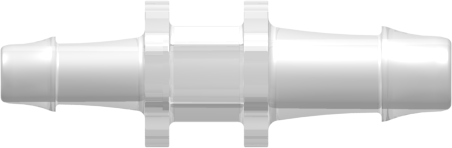

　N035/025-6005Straight Through Reduction Tube Fitting with 500 Series Barbs,
3/16" (4.8 mm) and 5/32" (4.0 mm) ID Tubing		Animal-Free Natural Polypropylene

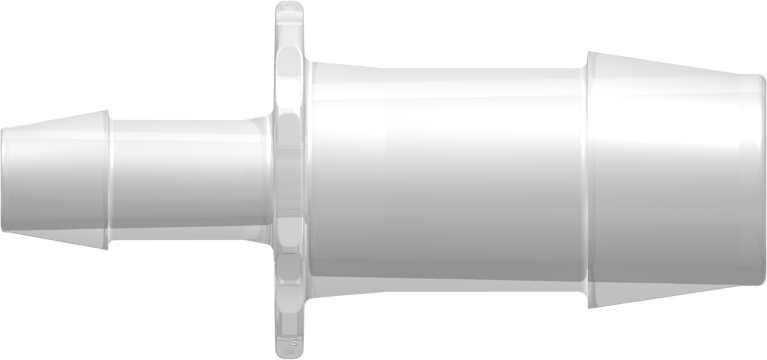

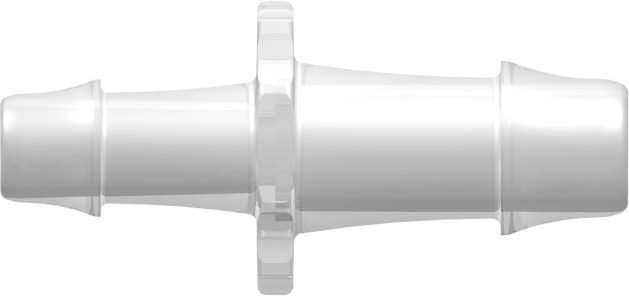

　N055/013-6005Straight Through Reduction Connector with 500 Series Barbs,
1/4" (6.4 mm) and 1/8" (3.2 mm) ID Tubing		Animal-Free Natural Polypropylene

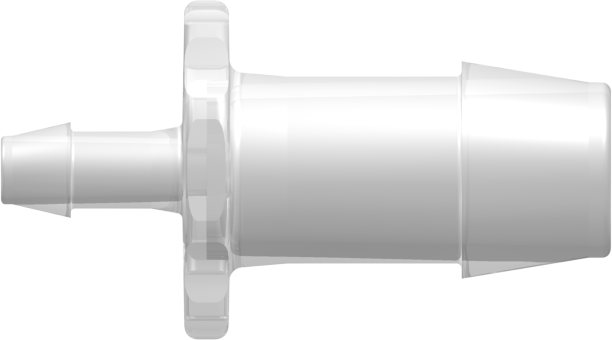

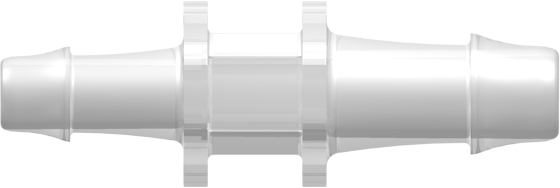

　N055/025-6005Straight Through Reduction Tube Fitting with 500 Series Barbs,
1/4" (6.4 mm) and 5/32" (4.0 mm) ID Tubing		Animal-Free Natural Polypropylene

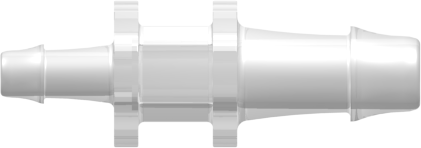

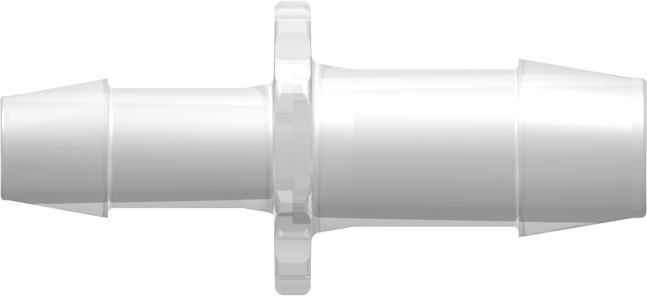

　N055/035-6005Straight Through Reduction Connector with 500 Series Barbs,
1/4" (6.4 mm) and 3/16" (4.8 mm) ID Tubing		Animal-Free Natural Polypropylene
　N065/035-6005Straight Through Reduction Tube Fitting with 500 Series Barbs,
5/16" (8.0 mm) and 3/16" (4.8 mm) ID Tubing		Animal-Free Natural Polypropylene
　N065/055-6005Straight Through Reduction Tube Fitting with 500 Series Barbs,
5/16" (8.0 mm) and 1/4" (6.4 mm) ID Tubing		Animal-Free Natural Polypropylene
　N070/013-6005Straight Through Reduction Tube Fitting with 500 Series Barbs,
3/8" (9.5 mm) and 1/8" (3.2 mm) ID Tubing		Animal-Free Natural Polypropylene
　N070/055-6005Straight Through Reduction Connector with 500 Series Barbs,
3/8" (9.5 mm) and 1/4" (6.4 mm) ID Tubing		Animal-Free Natural Polypropylene
　N080/055-6005Straight Through Reduction Tube Fitting with 500 Series Barbs,
1/2" (12.7 mm) and 1/4" (6.4 mm) ID Tubing		Animal-Free Natural Polypropylene
　N080/070-6005Straight Through Reduction Tube Fitting with 500 Series Barbs,
1/2" (12.7 mm) and 3/8" (9.5 mm) ID Tubing		Animal-Free Natural Polypropylene
　N090/070-6005Straight Through Reduction Tube Fitting with 500 Series Barbs,
5/8" (16.0 mm) and 3/8" (9.5 mm) ID Tubing		Animal-Free Natural Polypropylene
　N100/080-6005Straight Through Reduction Connector with 500 Series Barbs,
3/4" (19.0 mm) and 1/2" (12.7 mm) ID Tubing		Animal-Free Natural Polypropylene
　N220/210-6005Straight Through Reduction Tube Fitting with 200 Series Barbs,
3/32" (2.4 mm) and 1/16" (1.6 mm) ID Tubing		Animal-Free Natural Polypropylene
　N230/210-6005Straight Through Reduction Tube Fitting with 200 Series Barbs,
1/8" (3.2 mm) and 1/16" (1.6 mm) ID Tubing		Animal-Free Natural Polypropylene
　N230/220-6005Straight Through Reduction Tube Fitting with 200 Series Barbs,
1/8" (3.2 mm) and 3/32" (2.4 mm) ID Tubing		Animal-Free Natural Polypropylene
　N6100/670-6005Straight Through Reduction Tube Fitting with 600 Series Barbs,
3/4" (19 mm) and 3/8" (9.5 mm) ID Tubing		Animal-Free Natural Polypropylene
　N6100/680-6005Straight Through Reduction Tube Fitting with 600 Series Barbs,
3/4" (19 mm) and 1/2" (12.7 mm) ID Tubing		Animal-Free Natural Polypropylene
　N6110/6100-6005Straight Through Reduction Tube Fitting with 600 Series Barbs,
1" (25.4 mm) and 3/4" (19.0 mm) ID Tubing		Animal-Free Natural Polypropylene
　N6110/680-6005Straight Through Reduction Tube Fitting with 600 Series Barbs,
1" (25.4 mm) and 1/2" (12.7 mm) ID Tubing		Animal-Free Natural Polypropylene
　N6150/6110-6005Straight Through Reduction Tube Fitting with 600 Series Barbs,
1.5" HIGH FLOW (38.1 mm) and 1.0" (25.4 mm) ID Tubing		Animal-Free Natural Polypropylene
　N670/630-6005Straight Through Reduction Tube Fitting with 600 Series Barbs,
3/8" (9.5 mm) and 1/8" (3.2 mm) ID Tubing		Animal-Free Natural Polypropylene
　N670/655-6005Straight Through Reduction Tube Fitting with 600 Series Barbs,
3/8" (9.5 mm) and 1/4" (6.4 mm) ID Tubing		Animal-Free Natural Polypropylene
　N680/655-6005Straight Through Reduction Connector with 600 Series Barbs,
1/2" (12.7 mm) and 1/4" (6.4 mm) ID Tubing		Animal-Free Natural Polypropylene
　N680/670-6005Straight Through Reduction Connector with 600 Series Barbs,
1/2" (12.7 mm) and 3/8" (9.5 mm) ID Tubing		Animal-Free Natural Polypropylene
　N690/655-6005Straight Through Reduction Tube Fitting with 600 Series Barbs,
5/8" (16.0 mm) and 1/4" (6.4 mm) ID Tubing		Animal-Free Natural Polypropylene
