Tube To Tube Fittings

Nordson MEDICAL offers barbed tube fittings and tubing connectors in sizes ranging from 1/16” (1.6 mm) to 1.5” (38.1 mm) tubing ID in over 100 separate configurations in nylon, polypropylene, polycarbonate and PVDF, with other engineering resins available on special order. Available barb fitting styles include straight tube connectors, elbow fittings, tee fittings, crosses, Y (wye) connectors, multi-port connectors, and multiple straight, elbow and tee reducer combinations

FEATURES & BENEFITS

  • Configurations including straight tube connectors, Y connectors, multiport connectors, elbow fittings, tee fittings, all with optional reducers as well.
  • Sizes ranging from 1/16” (1/6 mm) to 1.5” (38.1 mm) ID.
  • Several barb styles offered to provide designers the widest range of assembly forces, pulloff resistance and blowoff resistance, without the need for clamps.
  • High-volume cross connectors available that allow superior flow, ideal for commercial applications.

MATERIALS

  • Available in standard resins such as nylon, polypropylene, polycarbonate, polyvinyldene fluoride (PVDF), with other engineering resins by special order.

BARB STYLES

  • Available barbed fitting styles include straight tube connectors, elbow fittings, tee fittings, crosses, Y (wye) connectors, multi-port connectors, and multiple straight, elbow, and tee reducer combinations .

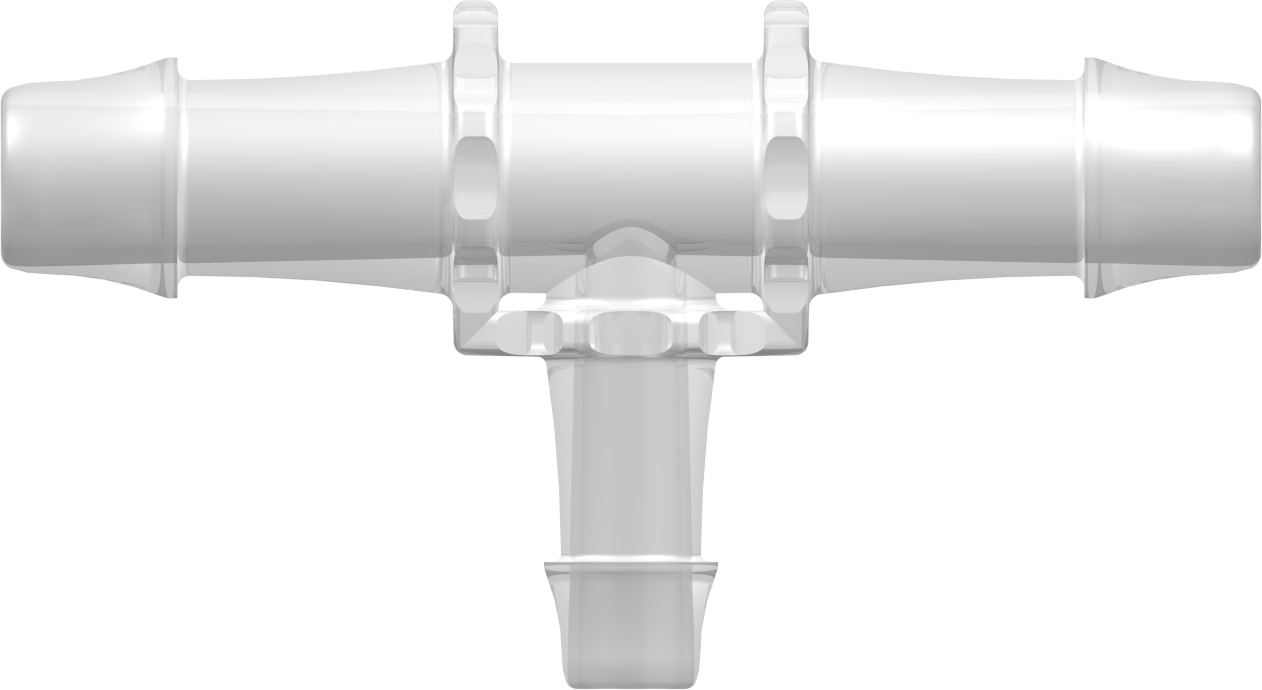

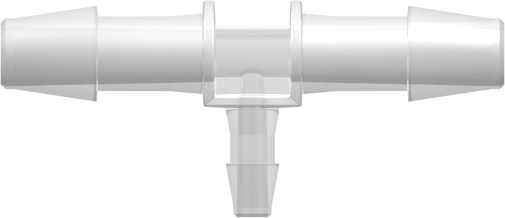

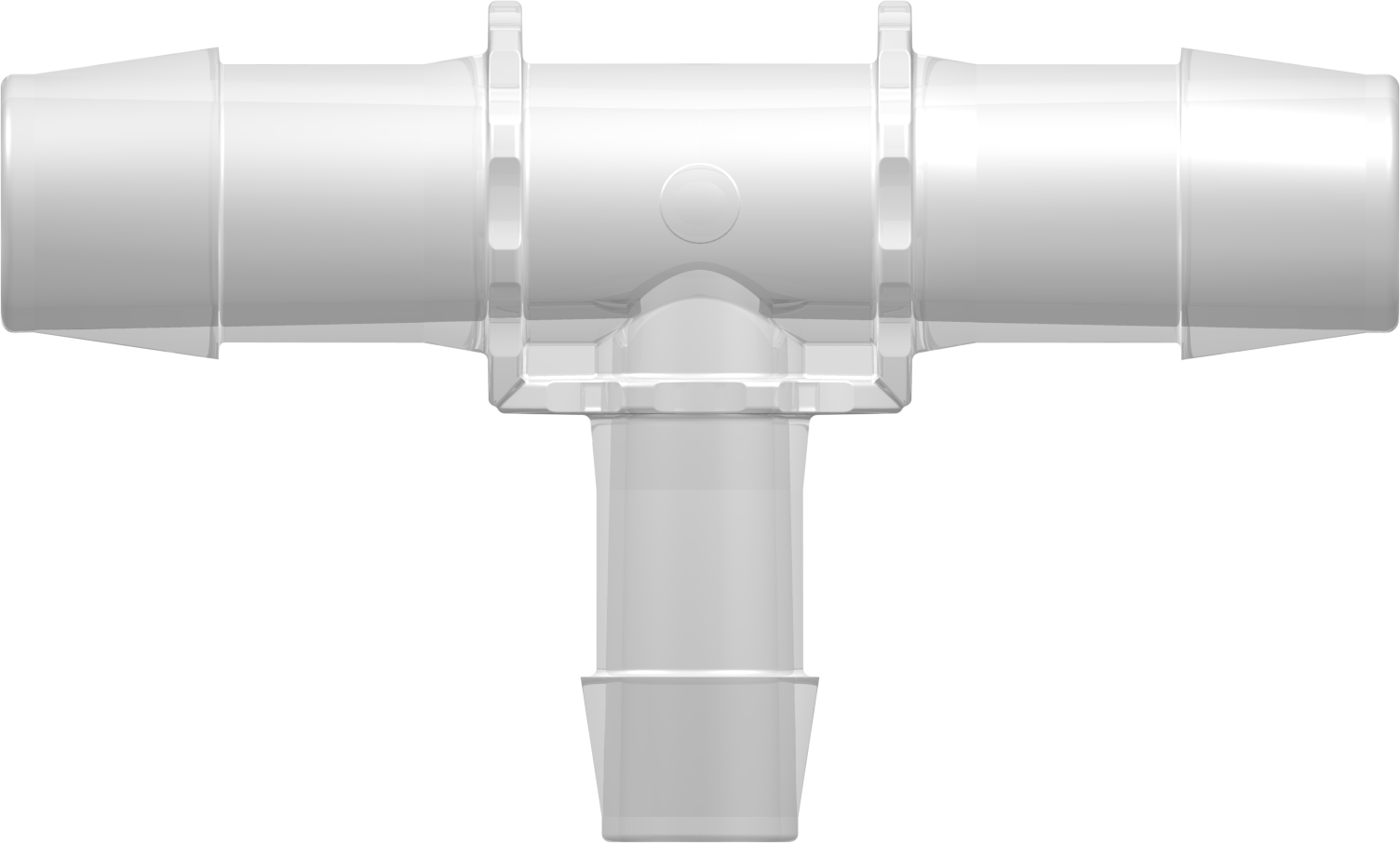

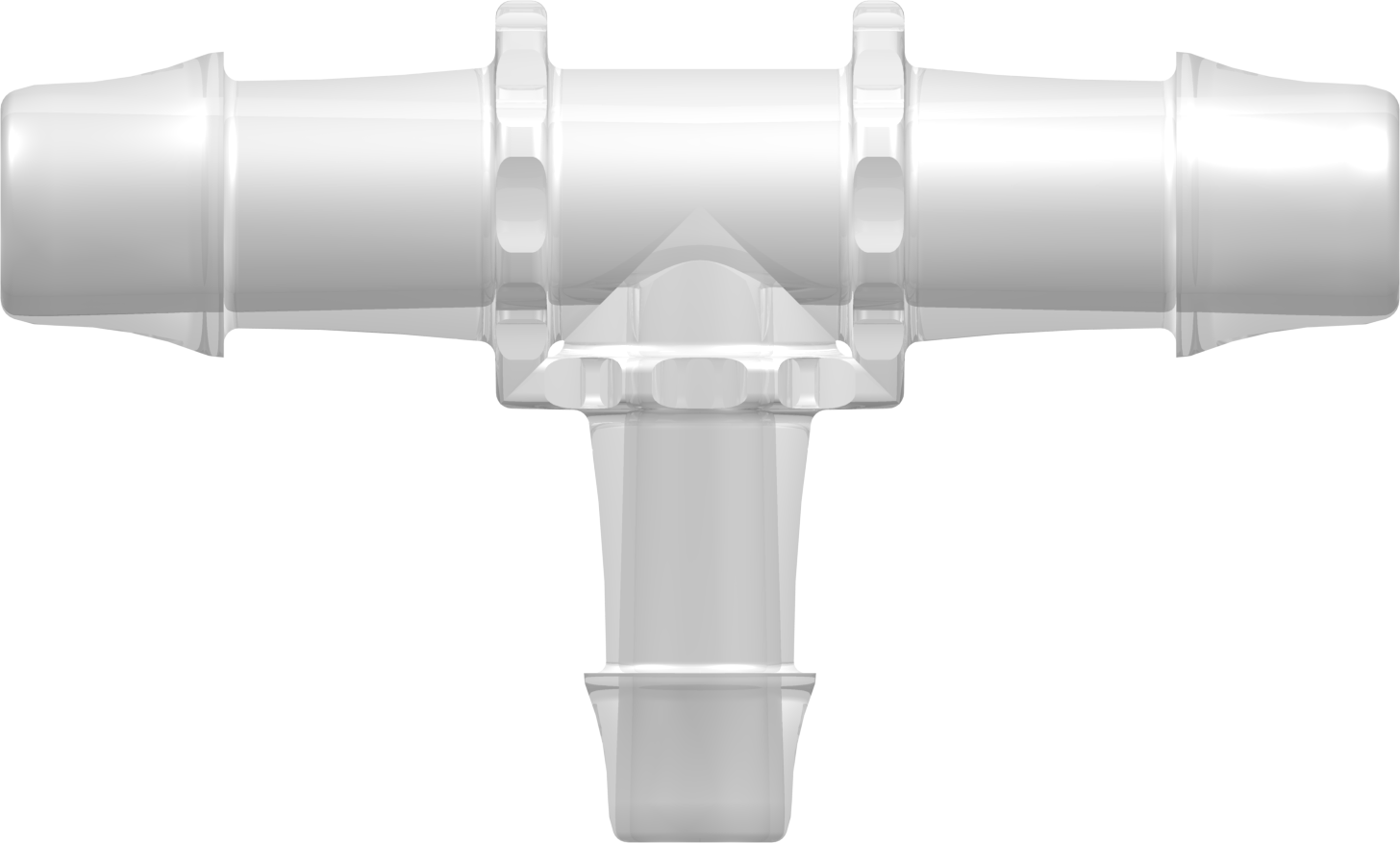

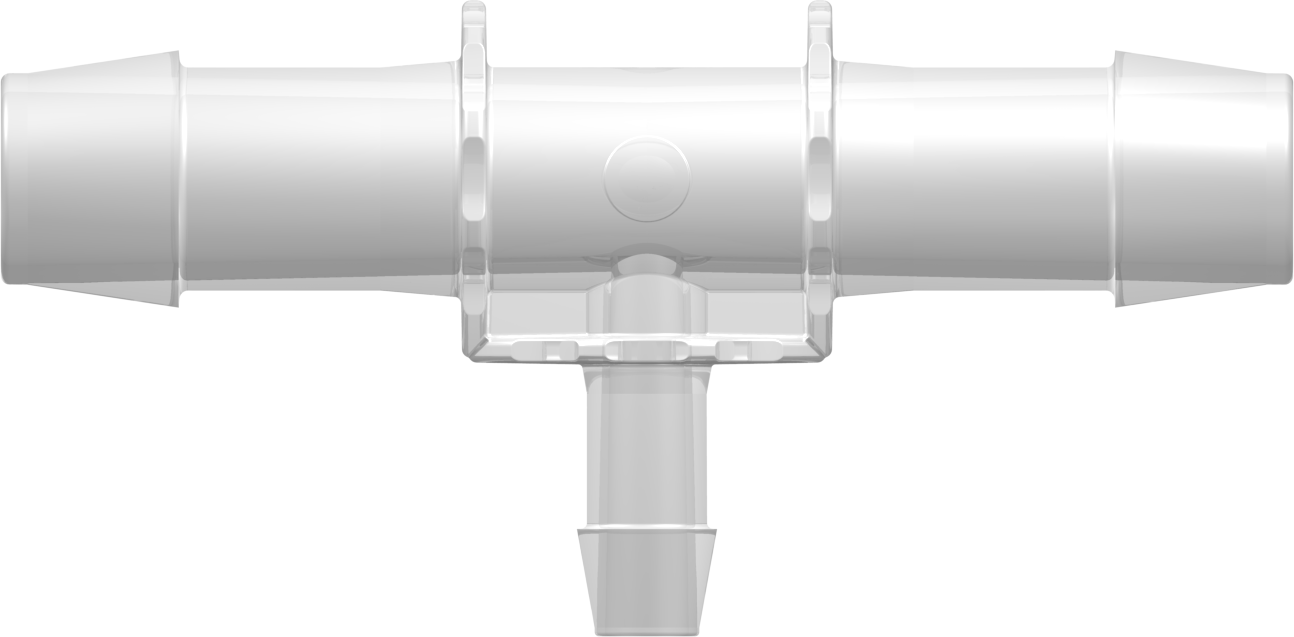

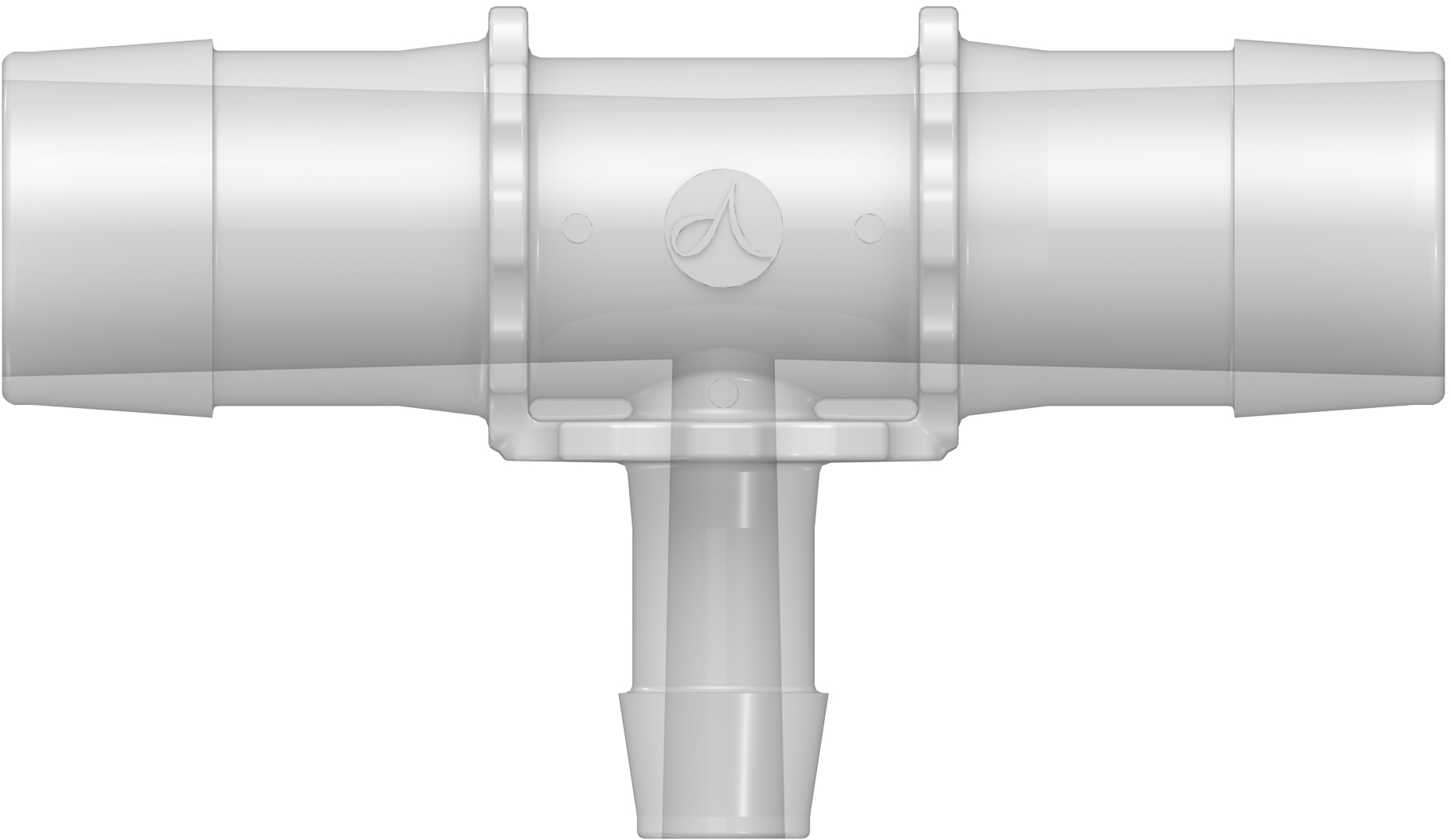

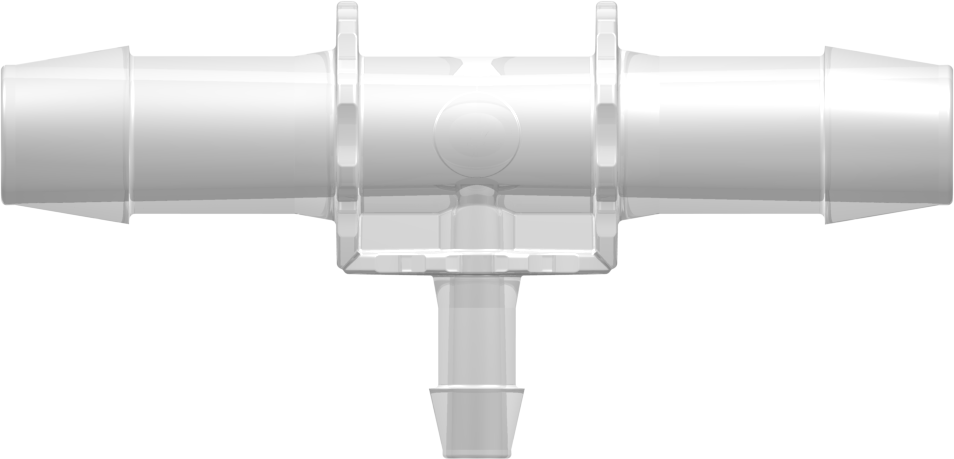

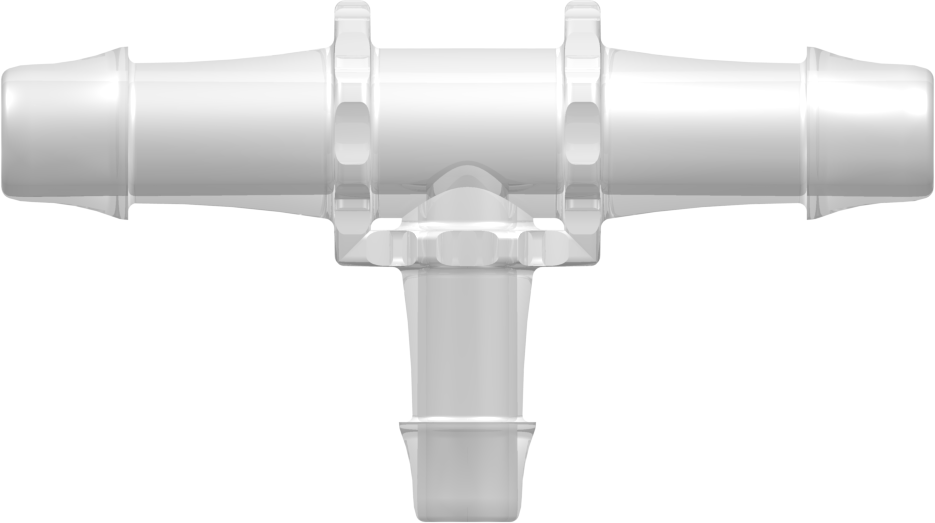

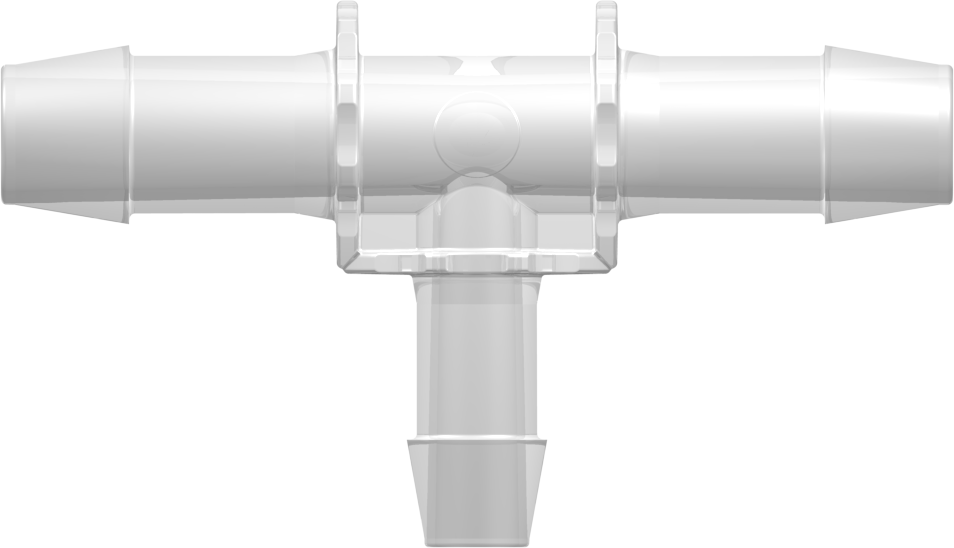

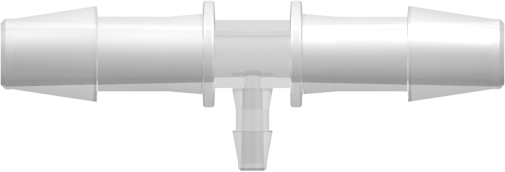

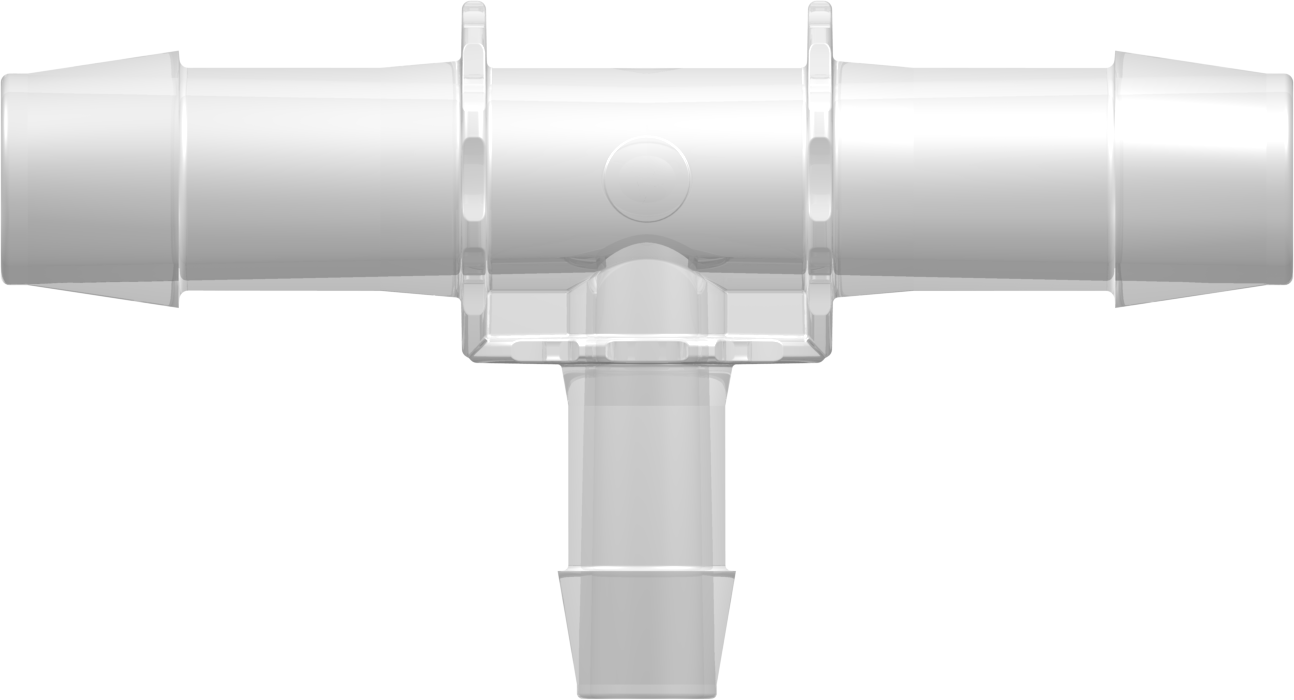

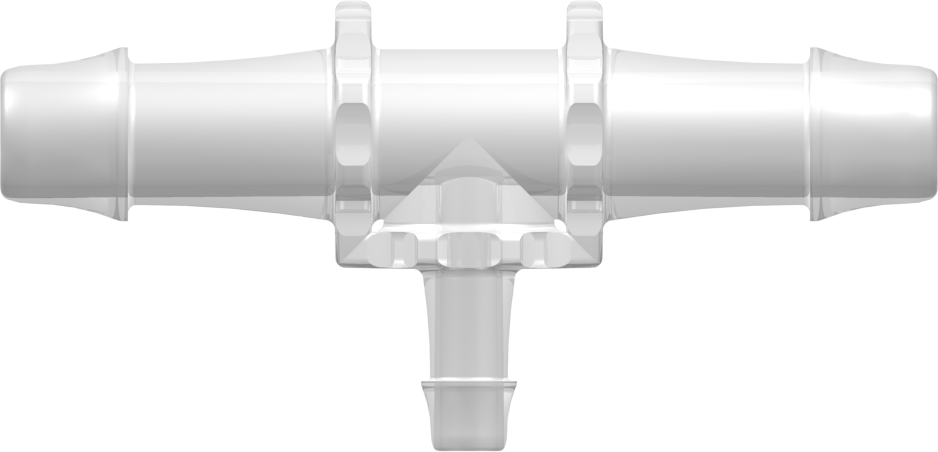

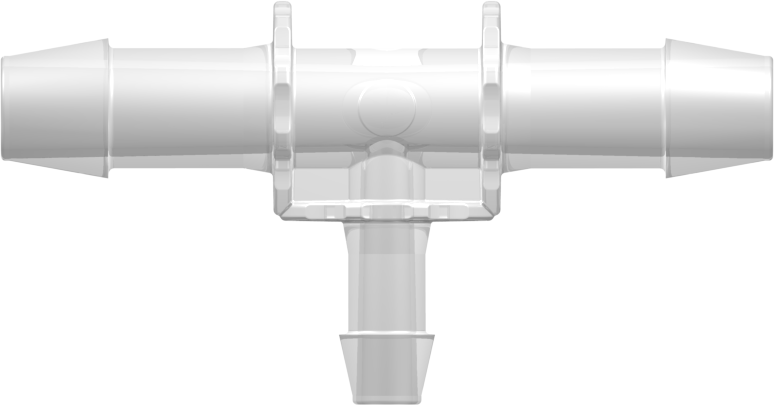

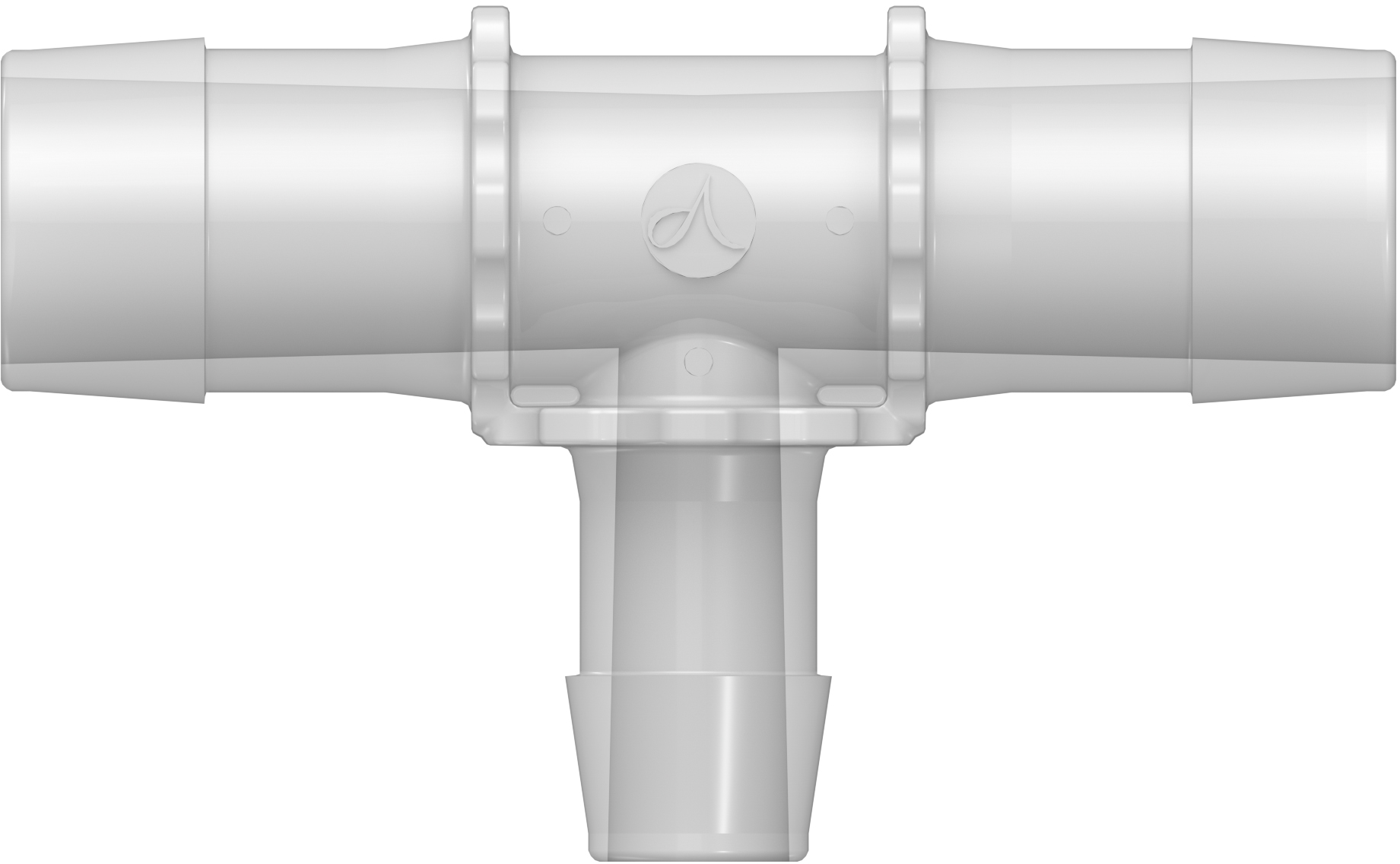

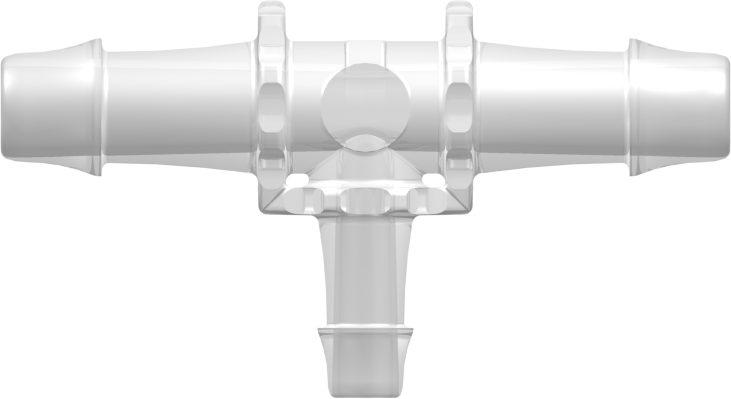

Tube To Tube Fittings Tee Reducer

Tee ReducerCat No.DESCRIPTIONMaterial
　T070/055-6005Tee Reduction Tube Fitting with 500 Series Barbs,
3/8" (9.5 mm) and 1/4" (6.4 mm) ID Tubing		Animal-Free Natural Polypropylene
　T080/055-6005Tee Reduction Tube Fitting with 500 Series Barbs,
1/2" (12.7 mm) and 1/4" (6.4 mm) ID Tubing		Animal-Free Natural Polypropylene
　T080/070-6005Tee Reduction Tube Fitting with 500 Series Barbs,
1/2" (12.7 mm) and 3/8" (9.5 mm) ID Tubing		Animal-Free Natural Polypropylene
　T100/080-6005Tee Reduction Tube Fitting with 500 Series Barbs,
3/4" (19.0 mm) and 1/2" (12.7 mm) ID Tubing		Animal-Free Natural Polypropylene
　T110/100-6005Tee Reduction Tube Fitting with 500 Series Barbs,
1" (25.4 mm) and 3/4" (19.0 mm) ID Tubing		Animal-Free Natural Polypropylene
　T210/220-6005Tee Reduction Tube Fitting with 200 Series Barbs,
1/16" (1.6 mm) and 3/32" (2.4 mm) ID Tubing		Animal-Free Natural Polypropylene
　T210/230-6005Tee Reduction Tube Fitting with 200 Series Barbs,
1/16" (1.6 mm) and 1/8" (3.2 mm) ID Tubing		Animal-Free Natural Polypropylene
　T220/210-6005Tee Reduction Tube Fitting with 200 Series Barbs,
3/32" (2.4 mm) and 1/16" (1.6 mm) ID Tubing		Animal-Free Natural Polypropylene
　T220/230-6005Tee Reduction Tube Fitting with 200 Series Barbs,
3/32" (2.4 mm) and 1/8" (3.2 mm) ID Tubing		Animal-Free Natural Polypropylene
　T230/210-6005Tee Reduction Tube Fitting with 200 Series Barbs,
1/8" (3.2 mm) and 1/16" (1.6 mm) ID Tubing		Animal-Free Natural Polypropylene
　T230/220-6005Tee Reduction Tube Fitting with 200 Series Barbs,
1/8" (3.2 mm) and 3/32" (2.4 mm) ID Tubing		Animal-Free Natural Polypropylene
　T360/220-6005Tee Reduction Tube Fitting with 200 and 300 Series Barbs,
1/4" (6.4 mm) and 3/32" (2.4 mm) ID Tubing		Animal-Free Natural Polypropylene
　T360/230-6005Tee Reduction Tube Fitting with 200 and 300 Series Barbs,
1/4" (6.4 mm) and 1/8" (3.2 mm) ID Tubing		Animal-Free Natural Polypropylene
　T6100/670-6005Tee Reduction Connector with 600 Series Barbs,
(2X) 3/4" (19.0 mm) and 3/8" (9.5 mm) ID Tubing		Animal-Free Natural Polypropylene
　T6100/680-6005Tee Reduction Connector with 600 Series Barbs,
(2X) 3/4" (19.0 mm) and 1/2" (12.7 mm) ID Tubing		Animal-Free Natural Polypropylene
　T6110/6100-6005Tee Reduction Connector with 600 Series Barbs,
(2X) 1" (25.4 mm) and 3/4" (19.0 mm) ID Tubing		Animal-Free Natural Polypropylene
　T6150/6100-6005Tee Reduction Connector with 600 Series Barbs,
(2X) 1.5" HIGH FLOW (38.1 mm) and 3/4" (19.0 mm) ID Tubing		Animal-Free Natural Polypropylene
　T6150/6110-6005Tee Reduction Connector with 600 Series Barbs,
(2X) 1.5" HIGH FLOW (38.1 mm) and 1.0"" (25.4 mm) ID Tubing		Animal-Free Natural Polypropylene
　T670/655-6005Tee Reduction Connector with 600 Series Barbs,
(2X) 3/8" (9.5 mm) and 1/4" (6.4 mm) ID Tubing		Animal-Free Natural Polypropylene
　T680/655-6005Tee Reduction Connector with 600 Series Barbs,
(2X) 1/2" (12.7 mm) and 1/4" (6.4 mm) ID Tubing		Animal-Free Natural Polypropylene
　T680/670-6005Tee Reduction Connector with 600 Series Barbs,
(2X) 1/2" (12.7 mm) and 3/8" (9.5 mm) ID Tubing		Animal-Free Natural Polypropylene
