VENABIO® Braided Plus
VENABIO® Braided Plus
Platinum-cured silicone tubing / Complete validation package
APPLICATIONS
This product is braided using a polyester yarn structure.
This provides moderate pressure resistance and a maximum of 180℃.
G.O.Science T: 031-375-6493 E-Mail : info@gosci.co.kr
FEATURES
| Hardness | 60 Shore A | Roll Length | Available in 25ft and 50ft |
| Tensile strength | >7 N/mm² | Laser Etched | Traceable with reference, lot number and ID/OD |
| Elongation | >300% | Clean Room | Manufactured in ISO14644-1 Class 7 |
| Tear strength | >20 kN/m | Double Bag | Double bagged under vacuum |
| Density | 1.17 g/cm³ | Smoothness | Reduces protein binding and biofilm formation |
| Outer Layer | Platinum cured silicone. Postcured to completely eliminate volatiles | Animal Free | Animal derived component free |
| Temperature | -60℃ / +180℃ (-76℉/ +356℉) | Radiostable | Gamma/eBeam sterilization available |
STERILIZATION
◈ Dry heat, Autoclave, CIP/SIP
◈ Ethylene oxide, Hydrogen peroxide
◈ eBeam (25kGy)*, Gamma (25kGy)*
* Sterilization available prior shipment.
BIOCOMPATIBILITY
◈ ADCF, BSE/TSE, Extractables & Leachables, P/BPA,
◈ EU 10/2011, EU 1935/ 2004
◈ BfR XV, 3A 18-03
◈ EP/ 3.1.9., FDA 21CFR177.2600
◈ USP 85, USP 87, USP 88, USP 381, USP 788
◈ ISO 10993-4, ISO 10993-5, ISO 10993-6, ISO 10993-10, ISO 10993-11

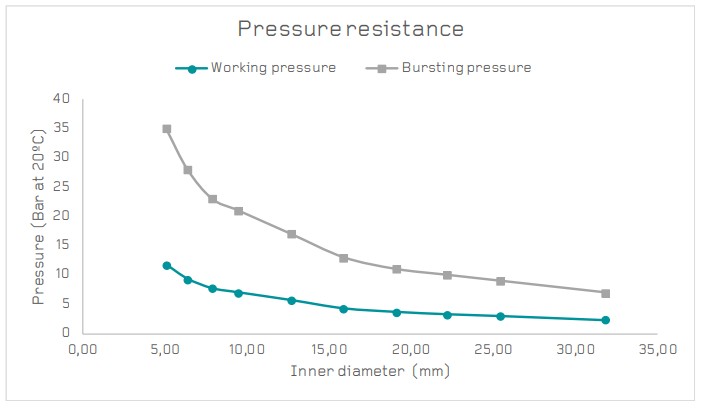

PRESSURE RESISTANCE
SPECIFICATIONS
CATALOG NO | METRIC (mm) | IMPERIAL (inches) | ||||
92008542* | ID | OD | WALL | ID | OD | WALL |
9200-8542-0208 | 1,6 | 7,90 | 3,20 | 1/16 | 1/3 | 1/8 |
9200-8542-0310 | 3,2 | 9,50 | 3,20 | 1/8 | 3/8 | 1/8 |
9200-8542-0511 | 4,8 | 11,10 | 3,20 | 3/16 | 4/9 | 1/8 |
9200-8542-0613 | 6,4 | 12,70 | 3,20 | 1/4 | 1/2 | 1/8 |
9200-8542-0916 | 9,5 | 15,90 | 3,20 | 3/8 | 5/8 | 1/8 |
9200-8542-1322 | 12,7 | 22,20 | 4,80 | 1/2 | 7/8 | 3/16 |
9200-8542-1625 | 15,9 | 25,40 | 4,80 | 5/8 | 1 | 3/16 |
9200-8542-1929 | 19,1 | 28,60 | 4,80 | 3/4 | 1 1/8 | 3/16 |
9200-8542-2232 | 22,2 | 31,80 | 4,80 | 7/8 | 1 1/4 | 3/16 |
9200-8542-2535 | 25,4 | 34,90 | 4,80 | 1 | 1 3/8 | 3/16 |
