VENABIO® Braided High Pressure

Platinum-cured silicone tubing / Complete validation package

APPLICATIONS

This product is braided using a polyester yarn.

This provides moderate pressure resistance and a maximum of 180˚C.

G.O.Science  T:  031-375-6493   E-Mail : info@gosci.co.kr

FEATURES

Hardness
60 Shore A
Roll Length
Available in 25ft and 50ft
Tensile strength
>10 N/mm²
Laser Etched
Traceable with reference, lot number and ID/OD
Elongation
>200%
Clean Room
Manufactured in ISO14644-1 Class 7
Tear strength
>20 kN/m
Double Bag
Double bagged under vacuum
Density
1.17 g/cm³
Smoothness
Reduces protein binding and biofilm formation
Outer Layer
Platinum cured silicone.
Postcured to completely eliminate volatiles
Animal Free
Animal derived component free
Temperature
-60℃ / +180℃ (-76℉/ +356℉)
Radiostable
Gamma/eBeam sterilization available

STERILIZATION

◈ Dry heat, Autoclave, CIP/SIP

◈ Ethylene oxide, Hydrogen peroxide

◈ eBeam (25kGy)*, Gamma (25kGy)*

 * Sterilization available prior shipment.

BIOCOMPATIBILITY

◈ ADCF, BSE/TSE, Extractables & Leachables, P/BPA,

◈ EU 10/2011, EU 1935/ 2004

◈ BfR XV, 3A 18-03

◈ EP/ 3.1.9., FDA 21CFR177.2600

◈ USP 85, USP 87, USP 88, USP 381, USP 788

◈ ISO 10993-4, ISO 10993-5, ISO 10993-6, ISO 10993-10, ISO 10993-11

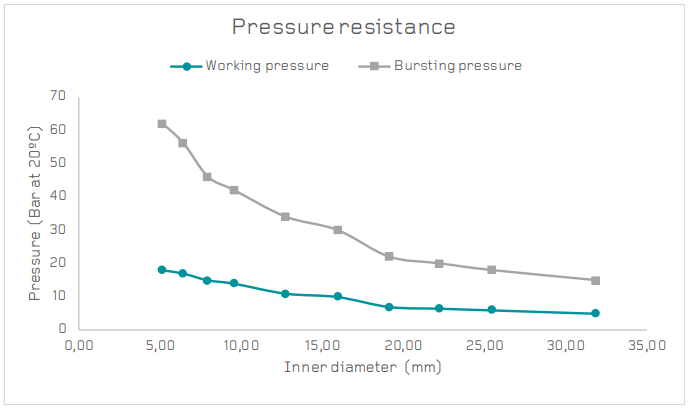

PRESSURE RESISTANCE

SPECIFICATIONS

CATALOG NO
METRIC (mm)
IMPERIAL (inches)
92008541*
ID
OD
WALL
ID
OD
WALL
9200-8541-0003
3,20
9,50
3,15
1/8
3/8
1/8
9200-8541-0004
4,80
10,00
2,60
3/16
37/94
9/88
9200-8541-0005
5,10
10,00
2,45
1/5
37/94
8/83
9200-8541-0006
6,40
13,20
3,40
1/4
13/25
2/15
9200-8541-0008
7,90
15,00
3,55
5/16
13/22
13/93
9200-8541-0009
9,50
16,60
3,55
3/8
17/26
13/93
9200-8541-0012
12,70
20,30
3,80
1/2
4/5
3/20
9200-8541-0016
15,90
24,50
4,30
5/8
27/28
11/65
9200-8541-0019
19,10
27,90
4,40
3/4
1 6/61
9/52
9200-8541-0022
22,20
31,30
4,55
7/8
1 23/99
12/67
9200-8541-0025
25,40
34,50
4,55
1
1 24/67
12/67
9200-8541-0032
31,80
40,80
4,50
1 1/4
1 57/94
14/79

COMPATIBILITY
