VENABIO® Double Braided

Platinum-cured silicone tubing / Complete validation package

APPLICATIONS

This product is braided using a polyester yarn.

This provides moderate pressure resistance and a maximum of 180˚C.

G.O.Science  T:  031-375-6493   E-Mail : info@gosci.co.kr

FEATURES

Hardness
60 Shore A
Roll Length
Available in 25ft and 50ft
Tensile strength
>7 N/mm²
Laser Etched
Traceable with reference, lot number and ID/OD
Elongation
>300%
Clean Room
Manufactured in ISO14644-1 Class 7
Tear strength
>20 kN/m
Double Bag
Double bagged under vacuum
Density
1.17 g/cm³
Smoothness
Reduces protein binding and biofilm formation
Outer Layer
Platinum cured silicone.
Postcured to completely eliminate volatiles
Animal Free
Animal derived component free
Temperature
-60℃ / +180℃ (-76℉/ +356℉)
Radiostable
Gamma/eBeam sterilization available

STERILIZATION

◈ Dry heat, Autoclave, CIP/SIP

◈ Ethylene oxide, Hydrogen peroxide

◈ eBeam (25kGy)*, Gamma (25kGy)*

 * Sterilization available prior shipment.

BIOCOMPATIBILITY

◈ ADCF, BSE/TSE, Extractables & Leachables, P/BPA,

◈ EU 10/2011, EU 1935/ 2004

◈ BfR XV, 3A 18-03

◈ EP/ 3.1.9., FDA 21CFR177.2600

◈ USP 85, USP 87, USP 88, USP 381, USP 788

◈ ISO 10993-4, ISO 10993-5, ISO 10993-6, ISO 10993-10, ISO 10993-11

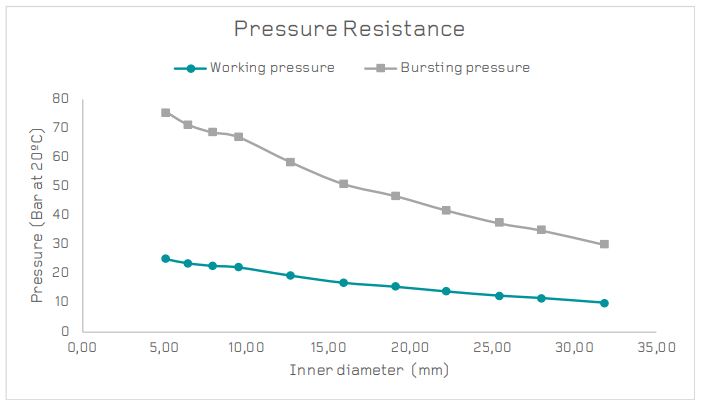

PRESSURE RESISTANCE

SPECIFICATIONS

CATALOG NO
METRIC (mm)
IMPERIAL (inches)
9200855*
ID
OD
WALL
ID
OD
WALL
9200-8550-0005
5,10
13,10
4,00
1/5
33/64
3/19
9200-8550-0006
6,40
16,10
4,85
1/4
45/71
17/89
9200-8550-0008
7,90
18,00
5,05
5/16
17/24
1/5
9200-8550-0010
9,50
20,00
5,25
3/8
37/47
6/29
9200-8550-0012
12,70
22,70
5,00
1/2
42/47
12/61
9200-8550-0015
15,90
27,10
5,60
5/8
1 1/15
15/68
9200-8550-0019
19,10
30,60
5,75
3/4
1 17/83
12/53
9200-8550-0022
22,20
33,20
5,50
7/8
1 4/13
21/97
9200-8550-0025
25,40
37,00
5,80
1
1 37/81
8/35
9200-8550-0028
28,00
41,60
6,80
1 4/39
1 44/69
15/56
9200-8550-0032
31,80
46,10
7,15
1 1/4
1 22/27
9/32

COMPATIBILITY
