VENABIO® Flow High Pressure

Platinum-cured silicone tubing

APPLICATIONS

Unreinforced tubing can withstand pressure without bursting, but suffers from diametral expansion.

Using a harder silicone we achieve a more robust product that keeps its shape under pressure while maintaining complete transparency through its wall.

G.O.Science  T:  031-375-6493   E-Mail : info@gosci.co.kr

FEATURES

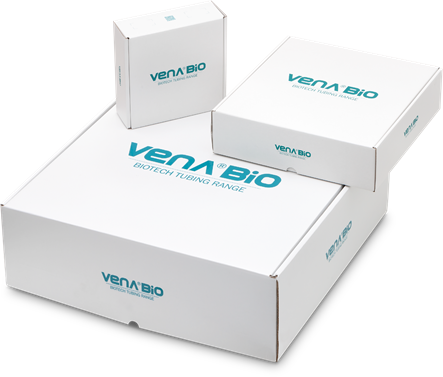

CRUSH

PROOF BOX

>Individually packed rolls

>Printed CoA inside

>Labels on both bags and box

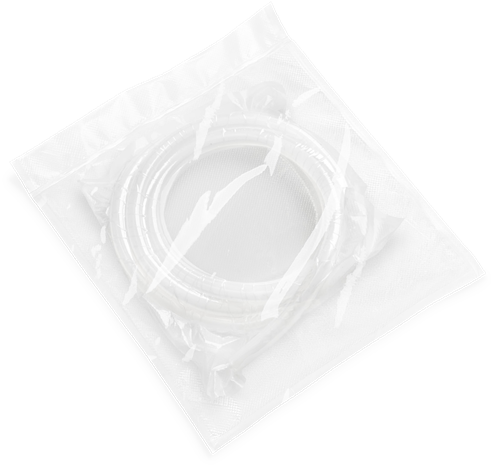

VACUUM

BAGGED

>Visual bag integrity proof

>Hydrogen peroxide vapour (HPV)  disinfection cycle compatible

Hardness
80 Shore A
Roll Length
Available in 50ft and 100ft
Tensile strength
>7 N/mm²
Laser Etched
Traceable with reference, lot number and ID/OD
Elongation
>250%
Clean Room
Manufactured in ISO14644-1 Class 7
Tear strength
>20 kN/m
Double Bag
Double bagged under vacuum
Density
1,24 g/cm³
Smoothness
Reduces protein binding and biofilm formation
Outer Layer
Platinum cured silicone.
Postcured to completely eliminate volatiles
Animal Free
Animal derived component free
Temperature
-60℃ / +220℃ (-76℉/ +428℉)
Radiostable
Gamma/eBeam sterilization available

STERILIZATION

◈ Dry heat, Autoclave, CIP/SIP

◈ Ethylene oxide, Hydrogen peroxide

◈ eBeam (25kGy)*, Gamma (25kGy)*

 * Sterilization available prior shipment.

BIOCOMPATIBILITY

◈ ADCF, BSE/TSE, Extractables & Leachables, P/BPA,

◈ EU 10/2011, EU 1935/ 2004

◈ BfR XV, 3A 18-03

◈ EP/ 3.1.9., FDA 21CFR177.2600

◈ USP 85, USP 87, USP 88, USP 381, USP 788

◈ ISO 10993-4, ISO 10993-5, ISO 10993-6, ISO 10993-10, ISO 10993-11

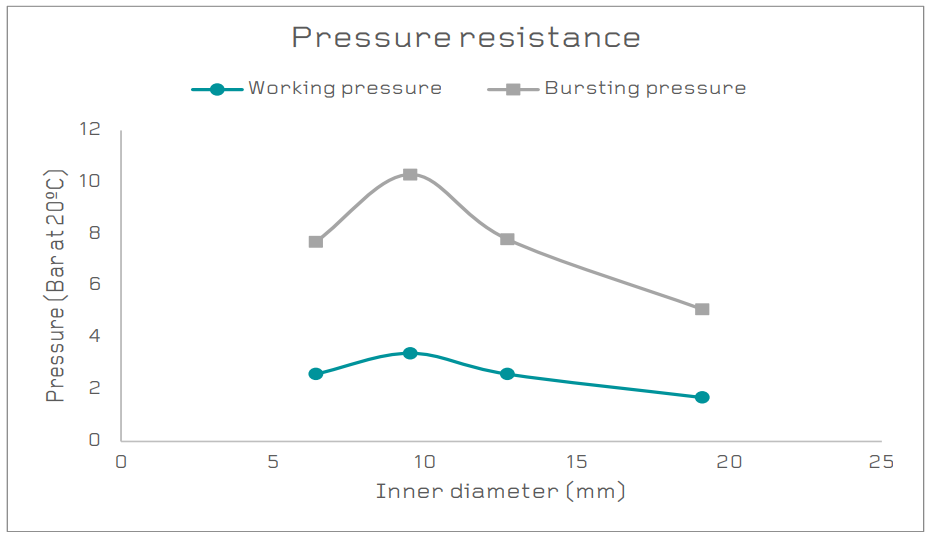

PRESSURE RESISTANCE

SPECIFICATIONS

CATALOG NO
METRIC (mm)
IMPERIAL (inches)
PUMP
9200857*
ID
OD
WALL
ID
OD
WALL
SIZE
9200-8570-0205
2,4
5,6
1,6
3/32
7/32
1/16
　
9200-8570-0306
3,2
6,4
1,6
1/8
1/4
1/16
16
9200-8570-0308
3,2
7,9
2,4
1/8
5/16
3/32
120
9200-8570-0309
3,2
9,5
3,2
1/8
1/8
1/8
　
9200-8570-0408
4,0
8,7
2,4
5/32
11/32
3/32
　
9200-8570-0508
4,8
7,9
1,6
3/16
5/16
1/16
25
9200-8570-0509
4,8
9,5
2,4
3/16
3/8
3/32
15
9200-8570-0511
4,8
11,1
3,2
3/16
7/16
1/8
123
9200-8570-0609
6,4
9,5
1,6
1/4
3/8
1/16
17
9200-8570-0611
6,4
11,1
2,4
1/4
7/16
3/32
24
9200-8570-0613
6,4
12,7
3,2
1/4
1/2
1/8
26
9200-8570-0811
7,9
11,1
1,6
5/16
7/16
1/16
18
9200-8570-0813
7,9
12,7
2,4
5/16
1/2
3/32
121
9200-8570-0814
7,9
14,3
3,2
5/16
9/16
1/8
　
9200-8570-0913
9,5
12,7
1,6
3/8
1/2
1/16
　
9200-8570-0914
9,5
14,3
2,4
3/8
9/16
3/32
122
9200-8570-0916
9,5
15,9
3,2
3/8
5/8
1/8
73
9200-8570-1316
12,7
15,9
1,6
1/2
5/8
1/16
　
9200-8570-1319
12,7
19,1
3,2
1/2
3/4
1/8
82
9200-8570-1622
15,9
22,2
3,2
5/8
7/8
1/8
　
9200-8570-1925
19,1
25,4
3,2
3/4
1
1/8
90
9200-8570-1928
19,1
28,6
4,8
3/4
1 1/8
3/16
　
9200-8570-2532
25,4
31,8
3,2
1
1 1/4
1/8
　
9200-8570-2535
25,4
34,9
4,8
1
1 3/8
3/16
92
9200-8570-2538
25,4
38,1
6,4
1
1 1/2
1/4
　

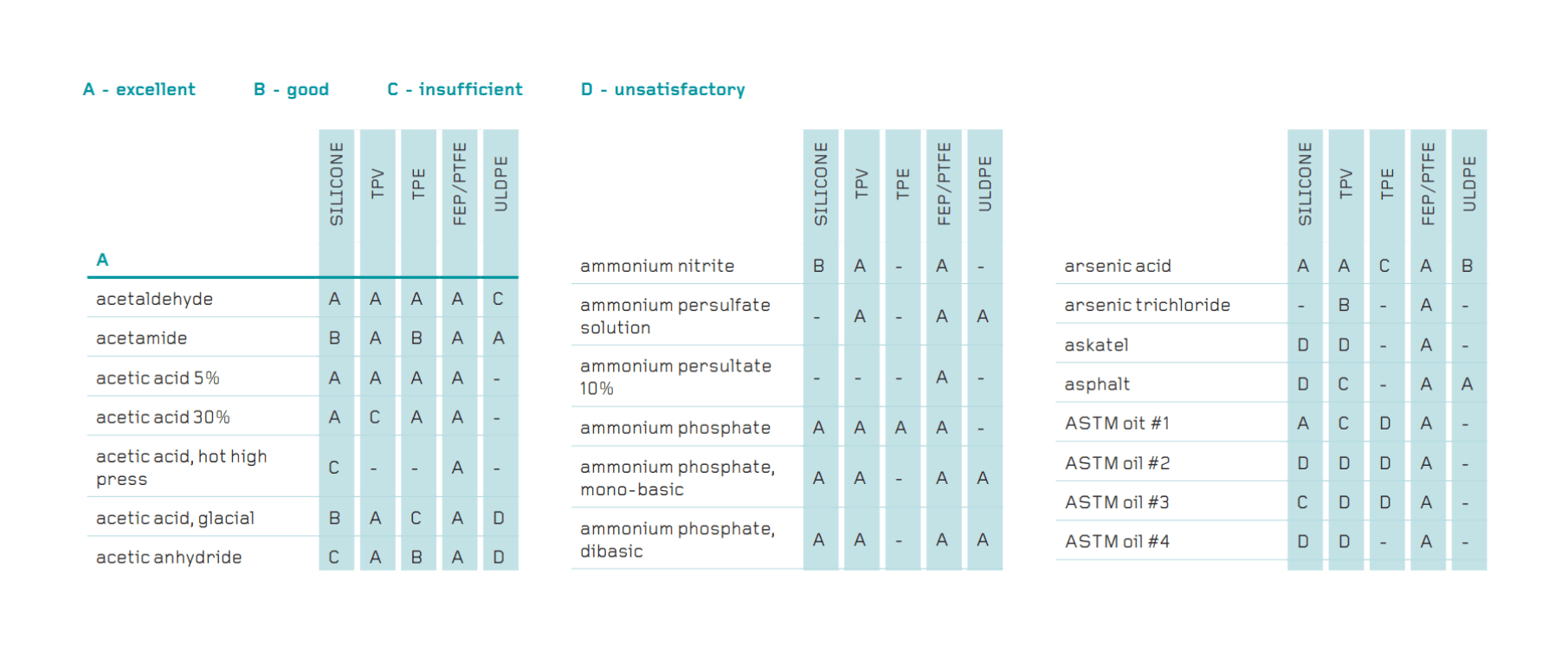

COMPATIBILITY
