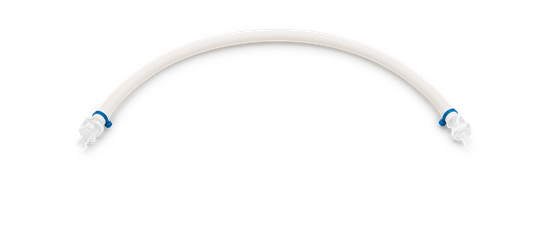

VENABIO® Transfer Kit
Tubing available in
◈ VENABIO® FLOW (Platinum-cured silicone)
◈ VENABIO® PUMP
◈ VENABIO® WELD
Connector avalivable in
◈ Polypropylene
◈ Polycarbonate
◈ PVDF
Under demand
◈ Different combination of inlet/outlet
◈ Other lengths and diameters
◈ Sanitary fitting tri-clamp 25mm
◈ Stainless steel band clamps
◈ Optional gamma/ eBeam sterilization at 25kGy
G.O.Science T: 031-375-6493 E-Mail : info@gosci.co.kr
VENABIO® TRANSFER KIT & Y· PUMP KIT
VENABIO® TRANSFER KIT
TUBING SIZE | LENGTH | CONNECTIONS | DESCRIPTION | |||||||||
| ID 3,20mm x OD 6,40mm | 0.5m 1.5m 5m | LURE | Inlet: Male luer lock, Polycarbonate, cap included Outlet: Needlefree swabable valve female luer lock, Polycarbonate | |||||||||
| ID 6,40mm x OD 9,50mm | 0.5m 1.5m 5m | LURE | Inlet: Male luer lock, Polycarbonate, cap included Outlet: Needlefree swabable valve female luer lock, Polycarbonate | |||||||||
| QUICK CONNECT | Inlet: RQC male quick connector, MPC compatible, Polypropylene, cap included Outlet: RQC female quick connector, MPC compatible, Polypropylene, cap included | |||||||||||
| TRICLAMP | Inlet: Sanitary fitting triclamp 50mm, Polypropylene Outlet: Sanitary fitting triclamp 50mm, Polypropylene | |||||||||||
| ID 9,50mm x OD 15,90mm | 0.5m 1.5m 5m | QUICK CONNECT | Inlet: RQC male quick connector, MPC compatible, Polypropylene, cap included Outlet: RQC female quick connector, MPC compatible, Polypropylene, cap included | |||||||||
| TRICLAMP | Inlet: Sanitary fitting triclamp 50mm, Polypropylene Outlet: Sanitary fitting triclamp 50mm, Polypropylene | |||||||||||
ID 12,70mm x OD 19,10mm | 0.5m 1.5m 5m | QUICK CONNECT | Inlet: RQC male quick connector, MPC compatible, Polypropylene, cap included Outlet: RQC female quick connector, MPC compatible, Polypropylene, cap included | |||||||||
| TRICLAMP | Inlet: Sanitary fitting triclamp 50mm, Polypropylene Outlet: Sanitary fitting triclamp 50mm, Polypropylene | |||||||||||
VENABIO® Y - PUMP KIT
| TUBING SIZE | LENGTH | CONNECTIONS | DESCRIPTION | |||||||||
| Inlet & Outlet Pumpable section | ID 6,40mm x OD 9,50mm ID 3,20mm x OD 6,40mm | Inlet & Outlet 0,5m Pumpable section 0,3m | LURE | Inlet: Male luer lock, Polycarbonate, cap included Outlet: Needlefree swabable valve female luer lock, Polycarbonate | ||||||||
| QUICK CONNECT | Inlet: RQC male quick connector, MPC compatible, Polypropylene , cap included Outlet: RQC female quick connector, MPC compatible, Polypropylene , cap included | |||||||||||
| TRICLAMP | Inlet: Sanitary fitting triclamp 50mm, Polypropylene Outlet: Sanitary fitting triclamp 50mm, Polypropylene | |||||||||||
| Inlet & Outlet Pumpable section | ID 9,50mm x OD 15,90mm ID 6,40mm x OD 9,50mm | Inlet & Outlet 0,5m Pumpable section 0,3m | QUICK CONNECT | Inlet: RQC male quick connector, MPC compatible, Polypropylene, cap included Outlet: RQC female quick connector, MPC compatible, Polypropylene, cap included | ||||||||
| TRICLAMP | Inlet: Sanitary fitting triclamp 50mm, Polypropylene Outlet: Sanitary fitting triclamp 50mm, Polypropylene | |||||||||||
| Inlet & Outlet Pumpable section | ID 12,70mm x OD 19,10mm ID 9,50mm x OD 15,90mm | Inlet & Outlet 0,5m Pumpable section 0,3m | QUICK CONNECT | Inlet: RQC male quick connector, MPC compatible, Polypropylene, cap included Outlet: RQC female quick connector, MPC compatible, Polypropylene, cap included | ||||||||
| TRICLAMP | Inlet: Sanitary fitting triclamp 50mm, Polypropylene Outlet: Sanitary fitting triclamp 50mm, Polypropylene | |||||||||||
