Food grade butyl rubber hose
Vena® FoodFood grade butyl rubber hose
Vena® Food
Food grade butyl rubber hose
Highly flexible EPDM hose manufactured with a inner liner of FDA butyl rubber for most of applications of food liquids processing.
APPLICATIONS
It is especially recommended for the transport of liquid or semi-liquid food products, even at high temperatures (milk, chocolate, mineral water, beer, alcoholic drinks, fruit juice, oil, cosmetic cream etc…). It is recommended especially when a smaller bending radius is required. Can work by impulsion (pressure) or suction (vacuum).
G.O.Science T: 031-375-6493 E-Mail : info@gosci.co.kr
FEATURES
| Customization | ○ Outer later - | Outer Layer | ○ EPDM rubber, smooth and violet. |
| ○ Reinforcement - | Reinforcement | ○ Stainless steel wire spring and polyester fabric reinforcement. | |
○ Traceability QR Marking Special marking | Inner Layer | ○ Butylic rubber, smooth and white. | |
○ Assemblies 316L Stainless steel SZR crimp fittings | Temperature | ○ -20ºC / +100ºC (-46ºF / 212ºF) | |
| Manufacturing Length | ○ 40m (131 ft.) | ||
| Vacuum Pressure | ○ Yes | ||
| Quality | ○ - | ||
SPECIFICATIONS
| INNER DIAMETER | WALL THICKNESS | WORKING PRESSURE | BENDING RADIUS | ||||
| mm | inch | mm | inch | Bar at 20℃ | Psi at 68℉ | mm | ft |
| 16 | 5/8 | 5.0 | 0.20 | 10 | 145 | 96 | 3.78 |
| 19 | 3/4 | 5.0 | 0.20 | 10 | 145 | 115 | 4.53 |
| 25 | 1 | 6.0 | 0.24 | 10 | 145 | 150 | 5.91 |
| 32 | 1 1/4 | 6.5 | 0.25 | 10 | 145 | 200 | 7.87 |
| 38 | 1 1/2 | 6.5 | 0.25 | 10 | 145 | 230 | 9.06 |
| 51 | 2 | 7.0 | 0.27 | 10 | 145 | 300 | 11.81 |
| 63 | 2 1/2 | 7.5 | 0.30 | 10 | 145 | 380 | 14.96 |
| 76 | 3 | 8.0 | 0.31 | 10 | 145 | 450 | 17.72 |
| 102 | 4 | 9.0 | 0.35 | 10 | 145 | 600 | 23.62 |

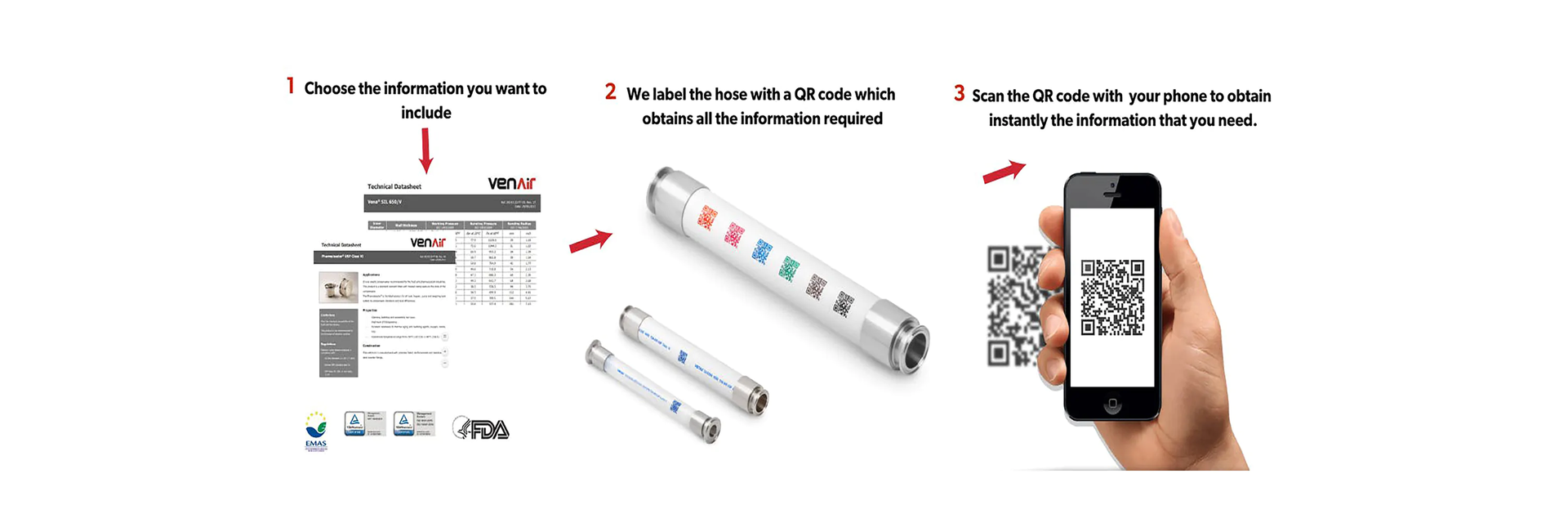

QR marking
The QR hose label can be marked in any FDA silicone hose without distorting any characteristic of the hose. This hose label assures 100% traceability allowing to have a more efficent system for product data reading. It’s an alternative to the chip system, the most commonly used in the market, however, it presents much more advantages:
