Chemical resistant silicone hose with FKM inner layer
Vena® VitosilChemical resistant silicone hose with FKM inner layer
Vena® Vitosil
Chemical resistant silicone hose with FKM inner layer
Flexible silicone hose with an FKM inner layer suitable for aggressive fluids.
APPLICATIONS
Due to the inner FKM layer it’s especially recommended to convey aggressive fluids that are not compatible with silicone, like acids or oils. This hose is able to transport liquid or semi-liquid foodstuffs at high temperatures by impulsion or suction, since their design can resist pressure or vacuum.
G.O.Science T: 031-375-6493 E-Mail : info@gosci.co.kr
FEATURES
| Customization | ○ Outer later Telcra: Innovative insulating material. X: Black conductive silicone. | Outer Layer | ○ VMQ Silicone, smooth and translucent |
| ○ Reinforcement AC: Copper wire spiral to improve static electricity discharge. Plastic wire (Vena Sil 650V Plastic). | Reinforcement | ○ Stainless steel wire spring and polyester fabric reinforcement. | |
○ Traceability QR Marking Special marking | Inner Layer | ○ FKM, smooth and black. | |
○ Assemblies 316L Stainless steel SZR crimp fittings | Temperature | ○ -30ºC / +180ºC (-75F / 356ºF) | |
| Manufacturing Length | ○ 4m (13.12ft). 6m (19.69ft) for standard diameters. | ||
| Vacuum Pressure | ○ 0.91 Bar (13.23 psi) | ||
| Quality | ○ FDA-CFR 21, item 177.2600. ○ ResAp 2004 (5), according to Reg. 1935/2004/EEC, and Reg. 10/2011/EEC. | ||
SPECIFICATIONS
| INNER DIAMETER | WALL THICKNESS | WORKING PRESSURE | BURSTING PRESSURE | ||||
| mm | inch | mm | inch | Bar at 20℃ | Psi at 68℉ | Bar at 20℃ | Psi at 68℉ |
| 18 | 5/7 | 3,70 | 0,15 | 13,40 | 194,30 | 40,30 | 584,40 |
| 25 | 1 | 3,70 | 0,15 | 8,40 | 121,80 | 25,30 | 366,90 |
| 35 | 1 3/8 | 3,70 | 0,15 | 5,50 | 79,20 | 16,20 | 237,50 |
| 38 | 1 1/2 | 3,70 | 0,15 | 4,60 | 66,70 | 13,70 | 198,70 |
| 48 | 1 7/8 | 3,70 | 0,15 | 4,10 | 59,50 | 12,30 | 178,40 |
| 60 | 2 3/8 | 3,70 | 0,15 | 3,50 | 51,20 | 10,60 | 153,70 |
| 65 | 2 9/16 | 3,70 | 0,15 | 3,30 | 47,90 | 9,90 | 143,60 |
| 70 | 2 3/4 | 3,70 | 0,15 | 3,10 | 44,50 | 9,20 | 133,40 |
| 75 | 3 | 3,70 | 0,15 | 2,80 | 40,60 | 8,40 | 121,80 |
| 80 | 3 1/8 | 3,70 | 0,15 | 2,60 | 37,20 | 7,70 | 111,70 |
| 90 | 3 1/2 | 3,70 | 0,15 | 2,10 | 30,50 | 6,30 | 91,40 |
QR marking
The QR hose label can be marked in any FDA silicone hose without distorting any characteristic of the hose. This hose label assures 100% traceability allowing to have a more efficent system for product data reading. It’s an alternative to the chip system, the most commonly used in the market, however, it presents much more advantages:

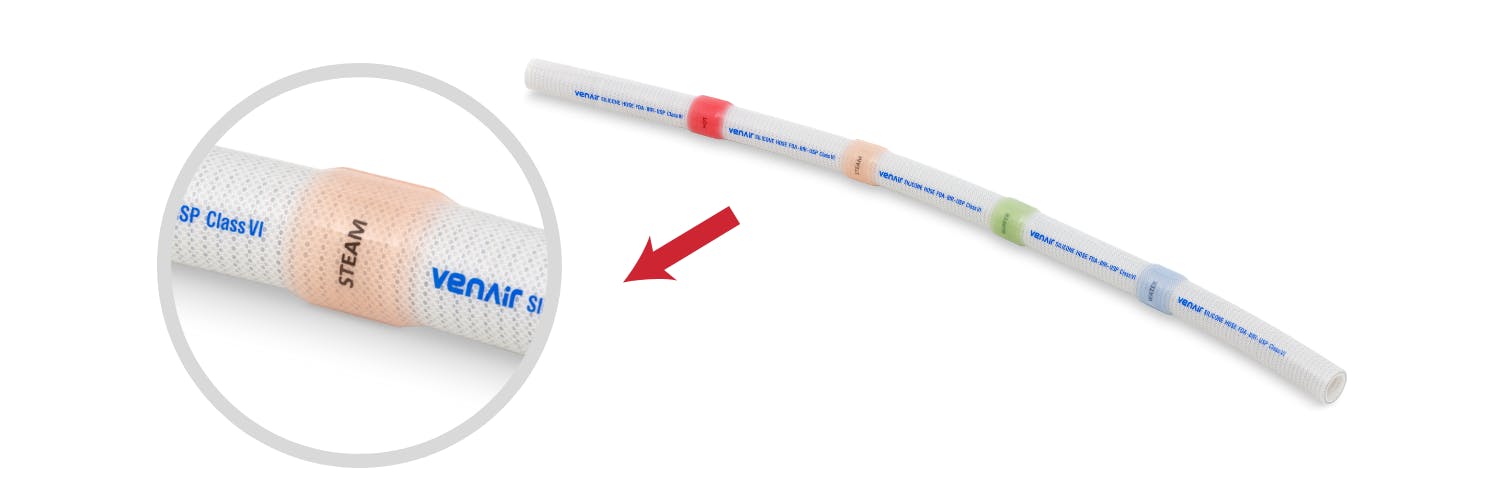

Silicone color labels
Venair also offers the possibility to include silicone labels over any hose in order to mark specific information that you require.
Labels offer clear identification, cleanliness and permanence in the silicone hose. The label is not in contact with the inner liquid and it’s made of permanent vulcanized silicone, certified free of animal-derived ingredients. Additionally, handles CIP and SIP processes and it’s autoclavable.
Silicone labels can be customized with more than 15 colors in order to meet your specific needs such as part number, manufacturing date, replacement date, or any specific information that you consider to be important.
